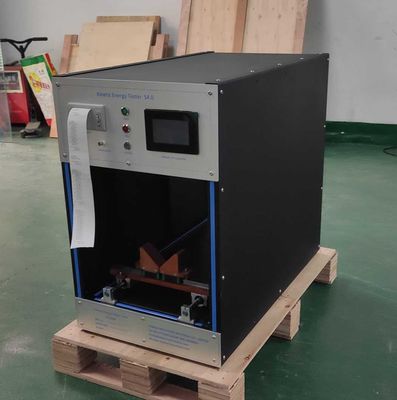

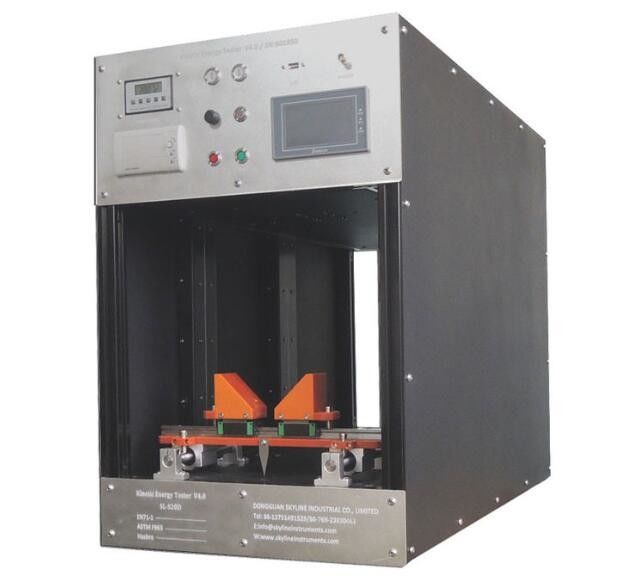

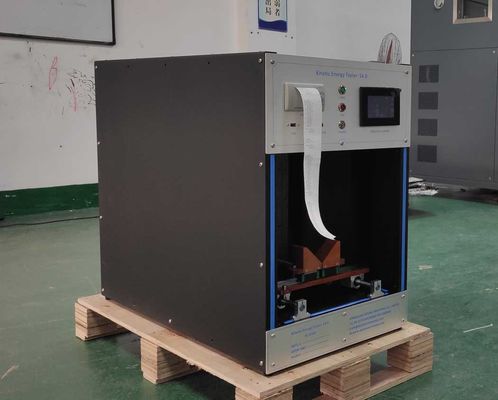

Toys Testing Equipment Touch Screen Control Kinetic Energy Tester Sensor Distance Select 100-500mm

Toys Testing Equipment Touch Screen Control Kinetic Energy Tester Sensor Distance Select 100-500mm

Toys Testing Equipment Touch Screen Control Kinetic Energy Tester Sensor Distance Select 100-500mm
Toys Testing Equipment Touch Screen Control Kinetic Energy Tester Sensor Distance Select 100-500mm
Toys Testing Equipment Touch Screen Control Kinetic Energy Tester Sensor Distance Select 100-500mm
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S20D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 pcs / month
Contact Now
Detailed Product Description
SKYLINE: Toy Kinetic Energy Tester Timer Error: <0.1ms
Sensor Distance Select: 100-500mm Sensor Distance Error: Internal Testing Channel Size
Sensors Distance: <0.5mm Volume(WxDxH): 89*73*47
Highlight:

stability test chamber

,

swing durability tester

Kinetic Energy Tester Toys Testing Equipment Sensor distance select 100-500mm



Kinetic Energy Tester 10-50CM.pdf


Product introduction

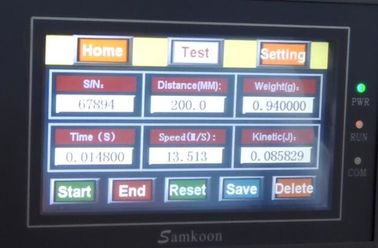

KE Tester is a equipment to check the speed of a object (DUT) which pass though the test tunnel .According to the result read out and mass value of DUT, we could calculate the kinetics energy value and know how danger of DUT it is .
Inside the test tunnel of this KE tester, there have three sets of Infra-Red sensor group. One set for start the timer and other two for stop the timer.
Each group include 30 pairs Infra-Red Sensor. They are located in opposite plate and the Infra-Red light are transmitter and receiver are fix in a opposite and signal will transmit and receive though a 1mm narrow gap.



Basic requirements
1.220V AC Input
2.DUT need to go through the tunnel in horizontally.
3.Diameter of DUT need to greater than 5mm
4.Speed of DUT must lower than 140m/s



Technical parameters

 Number of samples

 1/time

 Maximum timing

 15.000000S

 Timing range

 0.000001--15.000000S

 Speed display range

 0.007M/S—100M/S

 Induction spacing

 100-500mm, error 0.1mm

 Minimum diameter of sample

 5mm

 Volume(WxDxH)

 89*73*47

 Weight (approx.)

 ≈85kg

 Power supply

 1∮ AC 220V 3A



Basic Function /Specification

 Time counter interval  1/10000s
 Timer Error  <0.1ms
 Sensor distance select 100-500mm
 Sensor distance error  <0.5mm

EN71 Kinetic Energy Tester Sensor Distance Select ...

Assist Part

1.Bullet Simulator.

2.40cm wide test tunnel

3.Keyboard

4.PC Interface Cable

5.2” thermal printer

6.Spare thermal paper
