| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL828 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Building Materials Flammability Tester |
| Packaging Details: | Strong packing |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1pcs/month |
| SKYLINE: | Rigid Foam Vertical Burning Tester | Standard: | ASTM D3014 GB 8624:2012, GB/T 8333:2008 |
|---|---|---|---|
| Installation Requirements: Electricity Requirements: | 220V, 50HZ | Size: | 420 Mm (W) X 350 Mm (D) X 520 Mm (H) |
| Weight: | 15KG | Application: | Building Materials ,Other |
| High Light: | lab testing equipment,vertical flammability chamber |
||

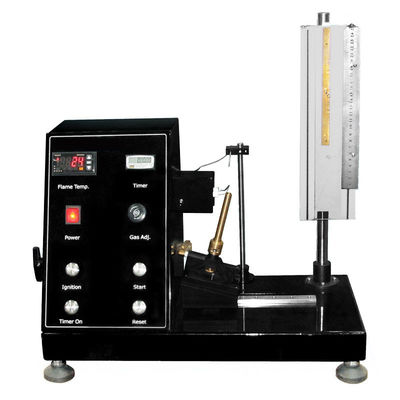

Building Materials Flammability Tester Test Method For Flammability Of Rigid Cellular Plastic
Product Description
Standard: ASTM D3014 GB 8624:2012, GB/T 8333:2008
The vertical combustion tester for rigid foam plastics is suitable for flame height, burning time and weight loss of rigid thermosetting foam plastics in vertical state. It meets GB/T 8333 and ASTM D3014a.
Performance characteristics
1. Equipped with Bunsen burner, it can provide 900 degree test temperature.
2. The thermocouple can be moved manually to avoid long time contact with flame damage.
3. The test can be completed by one key, and the burner adopts automatic driving mode.
4. The burning length can be displayed by measuring the steel ruler.
5. Gas flow can be adjusted and cut off by itself.
6. The test box is treated with Teflon to avoid corrosion.
Size: 420 mm (W) x 350 mm (D) x 520 mm (H) weight: 15KG
Installation requirements: Electricity requirements: 220V, 50HZ
Ambient temperature: 10 ℃ to 35 ℃
Installation space: Fume hood placement
Gas requirements: industrial propane
Applition : building materials ,Other
