EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester

EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester

  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
  • EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-S32-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: carton box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: EN Breakaway Feature Separation Tester Standards: EN-71-1
Scale: 1500mm Test Load: 25N
Dimension(L×D×H): 50×50×175 Weight: 16kg
High Light:

stability test chamber

,

swing durability tester

EN Breakaway Feature Separation Tester



Use

This unit is used to test whether, cords and chains on toys that can form a tangled loop or a noose, can be breakaway, or whether it complies with safety requirements after breakaway.

Fix one end of the cord or the strap. Apply a force of (25 ± 2) N vertically to the other end, along the axis of the cord or strap, in such a way that the breakaway feature is in the middle between the fixing points. Observe whether or not the cord, strap or breakaway feature separates.



Straps intended to be worn fully or partially around the neck

Toys with straps intended to be worn fully or partially around the neck and which create a fixed loop shall have

a breakaway feature which breaks when tested according to 8.38 (breakaway feature separation test)



This requirement applies only to straps intended to be worn fully or partially around the neck. Toy safety

harnesses, toy-backpack shoulder straps, and the straps of toy bag/bucket/box handles are not covered by this requirement

Straps of binoculars, guitars or other toys intended to be worn fully or partially around the neck are examples

of straps covered by this reqirement



Speicification

 Scale  1500mm
 Test load  25N
 Dimension(L×D×H)  50×50×175
 Weight  16kg
 Standards  EN-71-1

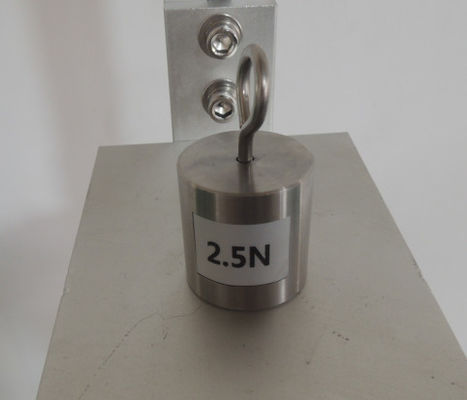

 Standard accessory  25N weight 1pc



EN-71-1 Toys Testing Equipment Breakaway Feature Separation Tester 0
