EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp

EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp

  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
  • EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-S50-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Motor Brake Performance Testing Ramp Standards: EN71-1, 2014
Testing Surface: Aluminium Oxide P 60 Ramp Degree: 10 ± 1 Degree
Demension(L×W×H): 400×122×86 Weight: 300kg
Highlight:

stability test chamber

,

swing durability tester

Motor Brake Performance Testing Ramp



Applications

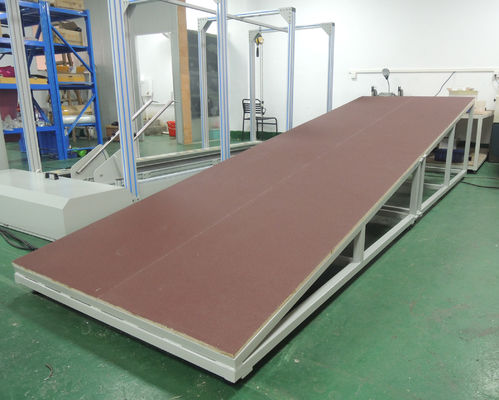

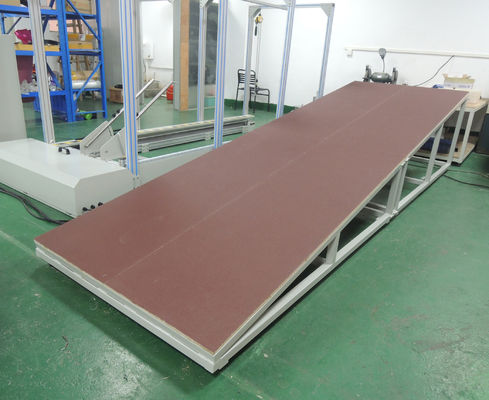

This Motor Brake Performance Tester is a longer 10 degree ramp, mainly used for the brake test of electric ride-on toys.


Standards
EN-71-1



Specification

 Ramp degree   10 ± 1 degree
 Testing surface  Aluminium oxide P 60
 Demension(L×W×H)  400×122×86
 Weight  300kg



Procedure

EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp 0Motor brake performance – Ramp test
Load the toy as in 8.21 (static strength) and place it on a plane inclined at (10 ± 1)° covered with a surface of
abrasive paper (aluminium oxide P60) with its longitudinal axis parallel to the incline. Allow the toy to roll down
the incline. Measure the average speed over a two-metre distance, starting when the toy has travelled one
metre from its starting point

EN71-1 2014 Toys Testing Equipment Ramp 10 ± 1 Degree Motor Brake Performance Testing Ramp 1
