| SKYLINE: | UV Ultraviolet Accelerated Aging Test Chamber | Temperature Range: | RT + 10 ° C ~ 70 ° C |
|---|---|---|---|
| Humidity Range: | ≥90% RH | Temperature Fluctuation: | ± 0.5 ° C |
| Irradiance: | Adjustable Within 1.0W/m2 | Test Time: | 0~999H (adjustable) |
| High Light: | physical testing equipment,brake testing equipment |
||

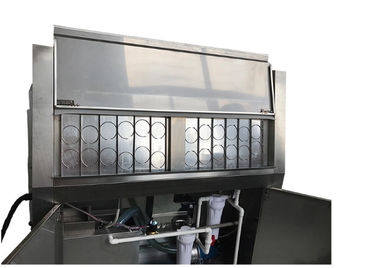

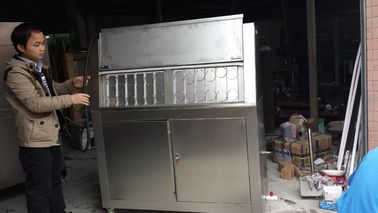

Product information
UV ultraviolet accelerated aging test chamber UV aging test chamber uses zui better than the ultraviolet light spectrum of the ultraviolet light spectrum in the sunlight, combined with temperature control, moisture supply and other devices to analogize the material to cause discoloration, brightness, strength drop, cracking, flaking, powder Sunlight (ultraviolet), such as high temperature, high humidity, condensation, dark rain cycle, etc., caused by chemical, oxidative and other damage, and the synergistic effect between ultraviolet light and moisture makes the material single light resistance or single moisture resistance weakened or invalid. It is widely used to evaluate the weather resistance of materials. The equipment has good sunlight ultraviolet simulation, good maintenance cost, easy to use, automatic control of equipment, high automation of test cycle, good light stability, test results. High recurrence rate.
Standards: ASTMG154

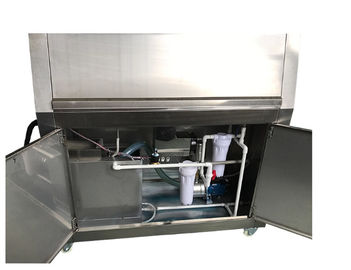

Structural System
1. Test box space: depth 400 × width 1140 × height 390mm
2. Dimensions: depth 500 × width 1300 × height 1360mm
3. Unit material: inside and outside 304 stainless steel
4. Sample holder: aluminum frame frame base frame
5. Control instrument: color touch screen program controller or RKC intelligent controller
6. Irradiation tube: A-340 or B-313 8 (optional) 4 sides per side, 2 sides
7. Can be two-way online (RS232 communication interface, optional)
8. Power supply leakage circuit breaker control circuit overload short circuit alarm, over temperature alarm, water shortage protection
Technical Parameters
1. The center distance between the test article and the lamp: 50 ± 3mm
2. Light, condensation, spray test cycle is adjustable
3. Control instrument: color touch screen Korea (TEMI880) or RKC intelligent controller
4. Temperature control mode: PID self-sufficiency SSR control
5. Standard test piece size: 75 × 290mm (special specifications need to be stated in the contract)
6. The water depth of the sink: 25mm automatic control
7. Effective irradiation area: 900×290mm
8. Ultraviolet wavelength: A range is 315-400nm; B range is 280-315nm
9. The unit has automatic spray function
| Temperature range | RT + 10 ° C ~ 70 ° C |
| Humidity range | ≥90% RH |
| Temperature uniformity | ± 1 ° C |
| Temperature fluctuation | ± 0.5 ° C |
| The center distance of the tube | 70mm |
| Irradiance | adjustable within 1.0W/m2 |
| The lamp | L = 1200/40W, 8 (A / B life 1800h or more) |
| Test time | 0~999H (adjustable) |
| Irradiation blackboard temperature | 50 ° C ~ 70 ° C |
| Standard sample holder | 24 pay |
