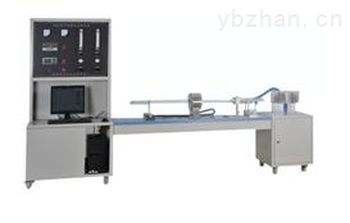

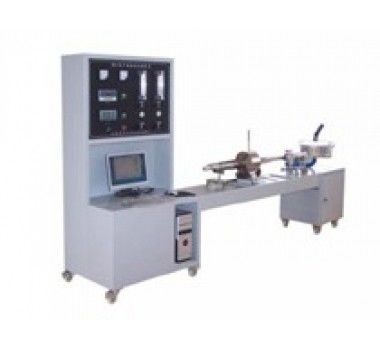

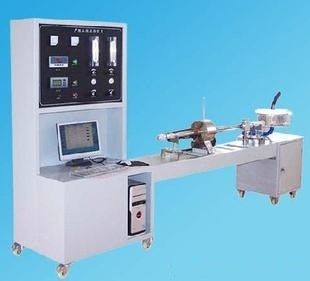

Material Smoke Toxicity Test Device
Application
Test equipment suitable for smoke toxicity hazard of stable production of tobacco.
Technical parameters
Material smoke toxicity test equipment performance index
| Power supply voltage | AC220V±10% 50HZ current ≤10A |
| Maximum power consumption | 1.5KW |
| Heating power | 800-1000W |
| Temperature control range | 300-1000 °C |
| Control accuracy | static ± 1 ° C |
| Air flow | 0-20L/min adjustable |
| Ring furnace displacement rate | (10 ± 0.1) mm / min |
| Equipment weight | 100kg |
Function
Microcomputer control, computer operation;
Ring furnace heating temperature calibration: display time, temperature curve and actual measured temperature comparison chart;
The smoke concentration and smoke production rate of the material are automatically calculated after setting;
A rotation chart showing the angular velocity of the squirrel cage in real time;
The operating time of the ring furnace is arbitrarily set;
With manual and automatic ring furnace fast forward and retreat functions.
Dimensions of the device: length × width × height (1.6 × 0.5 × 1.2) m;
