Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Minimum Order Quantity: | 1 unit |
---|---|
Packaging Details: | plywood case |
Delivery Time: | 15 working days |
Payment Terms: | Western Union, MoneyGram, T/T |
Supply Ability: | 1 pcs/ month |
SKYLINE: | Bicycle Material Testing Machine | Load Capacity: | KGF: 5000 (50KN) 10000(100KN) |
---|---|---|---|
Unit Exchange: | Force: N, KN, G, Kg, Ton, Lb | Load Resolution: | 1/2000 |
Load Precision: | ±5% | Testing Width(mm): | 1200 700 1200 700 |
High Light: | abrasion testing equipment,physical testing equipment |

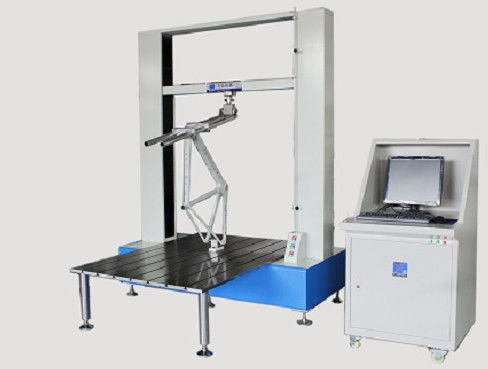

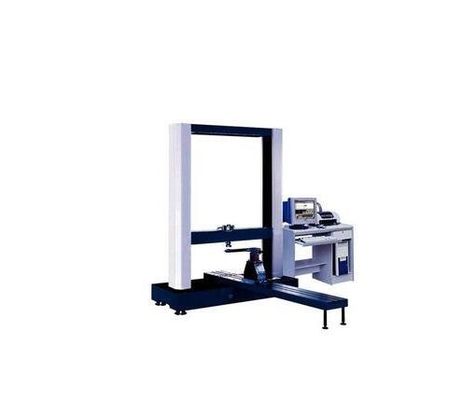

Bicycle Material Testing Machine
Product description
For bike parts and materials, into the car of the tensile, compressive, torsional strength testing and other testing, functional and versatile.
Main features
1. High-strength body structure: steel structure and durable, the maximum force of 200% safety factor, high stability and nice shape and beautiful, precise and elegant overall design, paint the surface with a high-level, high-value sense.
2. High-quality driving performance: precision ball screw drive gear stowage imported from Europe and servo drive motor, transmission accuracy, stability, and with the control software, the surface control functions meet all testing requirements.
3. High-tech features: super-crystal display controller functions can be controlled stand-alone graphic display of data stored by Resolution 1 / 20000, scalable 4 equipped with load cell and deflection meter function, single-line transmission and computer , set the control mode of talk about style, speed, precision, fine-tuning the high resolution control and stability control.
4. High levels of ultra-intelligent features: intelligent operating software, superior control, superior human-machine interface, easy modular configuration, automatic detection.
5. Fixture standardized modular: various test fixture connector specification standardized, modular test fixture replacement convenient, fast and easy.
6. High security design: Limit control set itinerary and emergency stop safety and security, overload capacity to set protection.
Technical parameter
Load capacity | KGF: 5000 (50KN) 10000(100KN) |
Unit exchange | Force: N, KN, g, kg, ton, lb |
Force | N, KN, g, kg, ton, lb |
Displacement | mm/cm/inch |
Load Resolution | 1/2000 |
Load precision | ±5% |
Force magnification | ×10%/×20%/×50%/×100% Automatic magnification subsection |
Testing width(mm) | 1200 700 1200 700 |
Power | 1Ø × 220VAC 50/60 Hz (3Ø ×380VAC) 2.0KVA/3.0KVA |
Volume (W×D×H) (cm) | 225×180×230/175×180×230/225×180×230/175×180×230 |
Weight (Kg) | 1400 1200 1400 1200 |
Standard accessory
1 set tool,1 set manual, 1 set revised report, 1 set warranty book
