|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||plywood case|
|Delivery Time:||15 working days|
|Payment Terms:||Western Union, MoneyGram, T/T|
|Supply Ability:||1 pcs/ month|
|SKYLINE:||Children's Foot Brake Fatigue Tester||Test Stroke:||0-2000 (cpm)|
|Test Speed:||0-10M/S (cpm)||Force Range:||0-2000N|
|Power Accuracy:||≤±0.5%||Sensor Resolution:||1/100,000|
physical testing equipment,
brake testing equipment

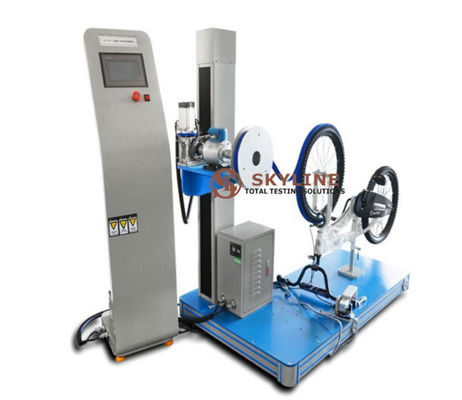

Children's Foot Brake Fatigue Tester Children's Bicycle Brake Performance Tester
Special structure, arbitrarily set test speed: 0-10M/S, speed double closed loop, and display current speed and braking distance in real time.
|Test stroke||0-2000 (cpm)|
|Test speed||0-10M/S (cpm)|
|Input voltage||220V, 50Hz|
|Room temperature||15 ~ 30 ° C|
The load test shall be carried out on the finished vehicle and the brake system shall be properly adjusted. In the plane of the brake lever action, at a distance of 25 mm from the end of the brake lever, a force is applied perpendicular to the sleeve of the cross tube to the brake lever. This force should meet one of the following conditions:
2) Although less than 300N, the brake lever of the wire gate has been touched by the handle of the horizontal pipe; or it is equal to the upper surface of the cover of the horizontal pipe.
3) Ten tests must be performed for each brake lever
The test should be carried out on a finished vehicle. Make sure the brake system is properly adjusted and place the right ankle crank in the horizontal position. A vertical force of 600 N is applied to the center of the right ankle axis for 15 s. The test was done ten times.
Hand brake performance test:
The hand brake performance test shall be carried out on the finished vehicle to remove the saddle and the saddle tube, but other components shall be fully assembled and the brakes adjusted correctly. Fix the child's bicycle and install the braking force measuring device on the wheel to be tested. In the action plane of the tested brake, 25mm from the end of the brake lever is perpendicular to the direction of the horizontal tube sleeve. force. Through the force measuring device, a stable pulling force is applied to the wheel in the tangential direction of the circumference of the tire and the direction in which the wheel is traveling. After pulling the wheel for one and a half years, when the tire surface of the wheel is at a stable linear speed of 0.5m/s to 2 m/s, pull one more turn and record the average braking force. For each force applied to the brake lever, three readings are taken and the average is taken. Repeat the test, at least five different forces are applied to the brake pads.
Foot brake performance test:
The performance test of the foot brake should be carried out on the finished vehicle, and the brake should be adjusted correctly. A child's bicycle is fixed and a force-measuring device is attached to the rear wheel. Apply a force of 20N to 100N on the ankle that is perpendicular to the crank and applied in the braking direction. Through the force measuring device, a stable pulling force is applied to the wheel in the tangential direction of the circumference of the tire and the direction in which the wheel is traveling. After pulling the wheel for one and a half years, when the tire surface of the wheel is at a stable linear speed of 0.5m/s to 2 m/s, pull one more turn and record the average braking force. For each force applied to the ankle, take three readings and take the average. Repeat the test, at least five different forces are applied to the ankle
ISO 8098:2002 "Children's Bicycle Safety Requirements"
