Name: Lab Testing Equipment Lever Arm Load (54±1)N Wally Pulping Machine/Walter Beater
Brand: SKYLINE
SKU: SKYLINE
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (135 reviews)

Home Products Lab Testing Equipment

Lab Testing Equipment Lever Arm Load (54±1)N Wally Pulping Machine/Walter Beater

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Wally Pulping Machine	Volume:	23 Liters
Flying Knife Roll Size:	φ194×155mm	Flying Blade Thickness:	4.7mm, 32 Pieces
Base Blade Thickness:	3.2mm, 7 Pieces	Lever Arm Load:	(54±1)N
Dimensions:	1250×580×880mm
High Light:	physical testing equipment , brake testing equipment

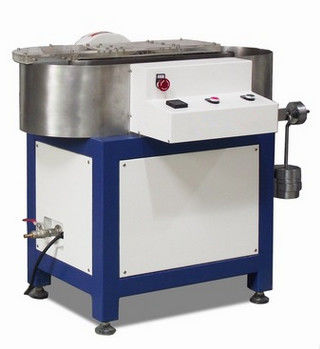

Wally Pulping Machine/Walter Beater

Application

The metered pulp having the specified concentration is placed between the knife roll and the smooth beating cylinder, and the knife roll and the beater cylinder are rotated at different peripheral speeds. This acts on the pulp to achieve the purpose of beating.

Technical parameter

Volume	23 liters
Blasting amount	200～700g (standard pulping amount: 360g dry pulp, Concentration: 1.57%)
Flying knife roll size	φ194×155mm
Flying knife roller speed	(8.3 ± 0.2) s-1; (500 ± 10r / min)
Flying blade thickness	4.7mm, 32 pieces
Base blade thickness	3.2mm, 7 pieces
Lever arm load	(54±1)N
Motor	0.55kw, 1400 rev / min, 380V / 50HZ
Dimensions	1250×580×880mm
