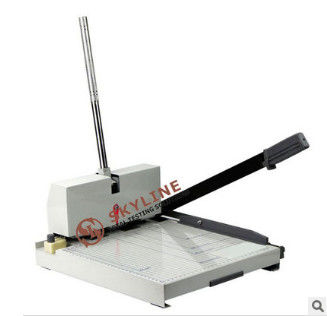

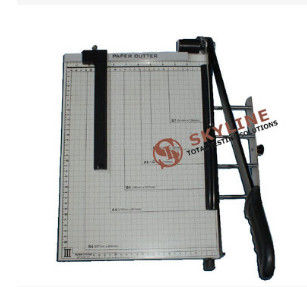

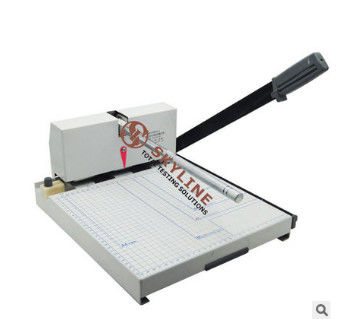

Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler

Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler

  • Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler
  • Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler
  • Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler
Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Adjustable-Distance-Paper-Cutter Other Sizes: ±0.50mm
Sampling Thickness Range: <1.0mm Cutting Parallelism: ≤0.1mm
Dimensions (length × Width × Height):: 560 Mm × 400 Mm × 160 Mm Weight: About 15kg
High Light:

abrasion testing equipment

,

physical testing equipment

Adjustable Sampling Knife Adjustable Distance Paper Cutter Tension Experimental Sampler



Product use overview
Special sampling instrument for physical property detection of paper and cardboard, which has the advantages of wide sampling size range, high sampling precision and easy operation.
It is a standard sample for tensile test, tear test, stiffness test and other tests. It is ideal for industries and departments such as paper making, packaging, testing and scientific research.
Auxiliary test apparatus.



Instructions for use
The sampler is used to cut paper and paperboard samples with a thickness of less than 1mm. To ensure the dimensional accuracy of the sample, the dimensional accuracy is not strict.
Specimens required by the grid can be cut in multiple layers; for critical dimensions of specimens that may affect the test results, it is recommended to use only a single layer of specimen for cutting.

Technical Parameters

 Sampling size rang  maximum length 300mm, maximum width 320mm
 Sampling size error  15mm ± 0.10mm; 38mm ± 0.20mm; 63mm ± 0.30mm
 Other sizes  ±0.50mm
 Sampling thickness range  <1.0mm
 Cutting parallelism  ≤0.1mm
 Dimensions (length × width × height)  560 mm × 400 mm × 160 mm
 Weight  about 15kg
