Home ProductsLab Testing Equipment

Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler

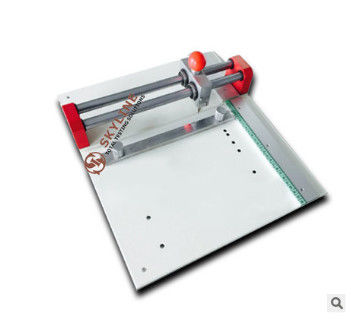

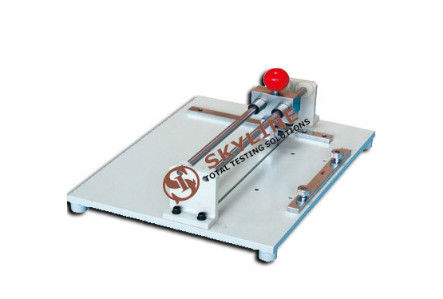

Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler

  • Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler
  • Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler
  • Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler
Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Paperboard Edge Compressive Strength Test Cutting Depth: <8mm Or Less
Volume: 550 × 450 × 160mm Maximum Thickness Of Sample: 18 Mm
Width Accuracy: 25±0.5mm Weight: 36kg
Highlight:

abrasion testing equipment

,

brake testing equipment

Paperboard Edge Compressive Strength Test



Product usage overview
The side pressure sample sampler is a special sampling device necessary for the corrugated board side pressure strength test and the bond strength test. It can quickly and accurately cut the sample of the specified size. It is the production, scientific research and quality supervision and inspection of corrugated board and carton. The ideal aid for the department.


Technical Parameters

 Adjustable spacing  25, 30, 50, 60, 80, 100, 150, 175 mm
 Cutting depth  <8mm or less
 Volume  550 × 450 × 160mm
 Weight  36kg
 Maximum thickness of sample  18 mm
 Sample size  25 mm × 100 mm (side pressure sample); 25 mm × 80 mm (bonded sample)
 Width accuracy  25±0.5mm



Side Pressure Sampler Paperboard Edge Compressive Strength Test Bond Strength Sampler 0
