| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| SKYLINE: | Touch Screen Display Paper Ink Absorbency Meter | Wiping Station Ink Running Speed: | 15.5 ± 1cm / Min |
|---|---|---|---|
| Opening Area Of Ink-coated Platen: | 20±0.4cm2 | Ink Plate Thickness: | 0.1mm ± 0.02mm |
| Power Supply: | 220V ± 10% 50Hz | Weight: | 33kg |
| High Light: | physical testing equipment,brake testing equipment |
||

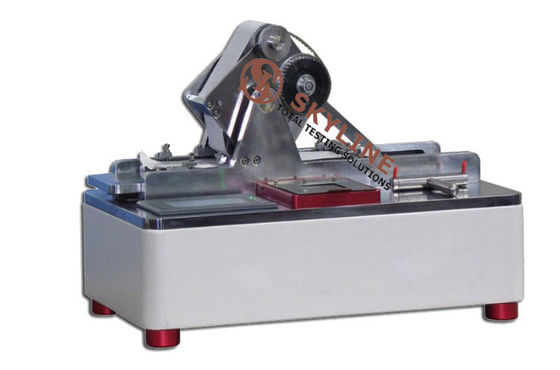

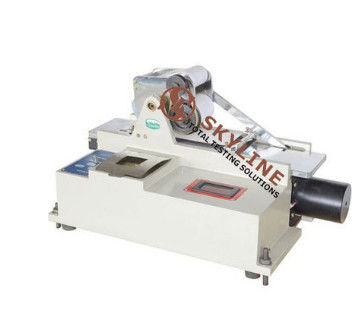

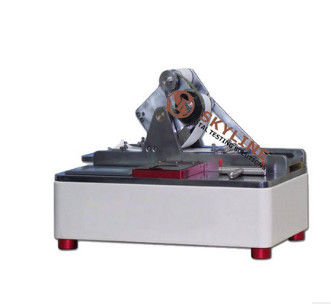

Touch Screen Display Paper Ink Absorbency Meter
Product use overview
The paper ink absorptivity tester measures the performance of paper or paperboard to absorb standard inks over a certain period of time and area.
This instrument is mainly used to measure the performance of paperboard board to absorb ink in a certain area at a specified time. Paper and paperboard ink absorption refers to
The acceptability of the paper to the ink and the ability to absorb the binder in the ink directly affect the penetration of the ink into the paper and the conjunctiva.
Or it reflects the ability of the ink to penetrate the paper, which occurs from the contact of the ink to the paper surface to a complete curing on the paper for a long time, and affects the drying of the ink film on the paper surface and the surface properties of the ink film.
Technical Parameters
| Wiping station ink running speed | 15.5 ± 1cm / min |
| Opening area of ink-coated platen | 20±0.4cm2 |
| Ink plate thickness | 0.1mm ± 0.02mm |
| Automatic mechanism controls ink absorption time | 120±5s |
| Man-machine interface | 4.3" color touch screen control |
| Working environment temperature | (20 ± 10 ° C), humidity <85% |
| Power supply | 220V ± 10% 50Hz |
| Power consumption | 90w |
| Dimensions | 535 × 308 × 280mm |
| Weight | 33kg |
