Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter

Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter

  • Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter
  • Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter
  • Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter
Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Paper Ring Pressure Sampler Measurement Range: (0-20)N, Resolution 0.01N
Measurable Paper Cup Diameter: 20-150mm Paper Cup Height: 15≤L≤120
Force Distance: 9.5±0.5mm Net Weight: 18 Kg
High Light:

abrasion testing equipment

,

brake testing equipment

Paper Ring Pressure Sampler

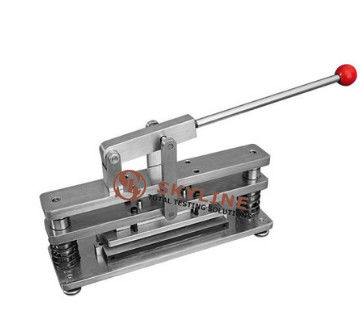

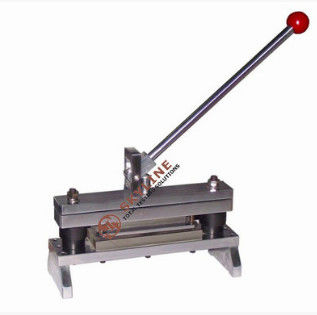

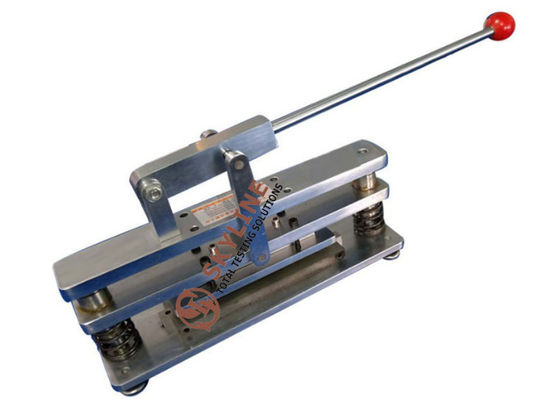

Product use overview
The ring sampler standard sampler is suitable for cutting the paper ring pressure strength and corrugated core paper flatness strength test. Is the paper ring compression strength test (RCT)
The necessary special sampling instruments are ideal test aids for the paper and packaging, scientific research, quality inspection and other industries and departments.


The sampling knife adopts bearings with good guiding accuracy and repeatability, and adopts reasonable fulcrum structure design to make sampling more accurate, convenient and light.


Technical Parameters

 Sampling length  152mm
 Sampling width  12.7mm
 Two long sides parallelism  <0.015mm
 Sampling thickness range  (0.1 ~ 1.0) mm
 Dimensions (length × width × height)  570mm × 190mm × 618mm
 Weight  about 20Kg

Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter 0
