Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| SKYLINE: | Bending Stiffness Tester | Measuring Range: | (15~10000) MN.m |
|---|---|---|---|
| Measuring Thickness: | (0-2) Mm | Indication Variability: | ≤1% |
| Load Arm Length: | 200 ° ± 20 ° / Min | Weight: | 15kg |
| High Light: | abrasion testing equipment,physical testing equipment |
||

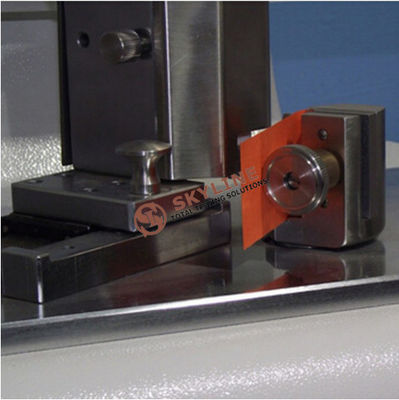

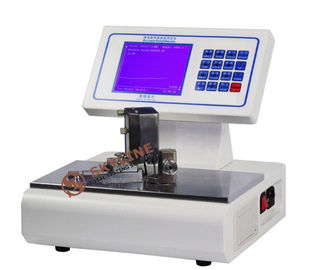

Bending Stiffness Tester / Crease Stiffness Cardboard Stiffness Tester
Product use overview
Bending stiffness tester / crease stiffness tester The computer stiffness tester is a multi-functional intelligent computer stiffness tester for measuring small thickness
Bending stiffness of 2mm paper, cardboard and other strength sheet-like non-metallic materials.
Features
The instrument test angle can be arbitrarily set between (1 and 20) °, and the test time can be arbitrarily set within the specified range (3s to 30s). Self-sufficient
The zero-test function is used to display the stiffness and time curve in real time. The touch screen is simple and convenient to operate. This instrument has various parameters included in the standard.
Test, display, memory, statistics and printing functions to provide scientific data analysis for cardboard bending stiffness detection
Technical parameters
| Measuring range | (15~10000) mN.m |
| Measuring thickness | (0-2) mm |
| Resolution | 0.1mN |
| Indication variability | ≤1% |
| Bending length | (50/25/20/15/10/5) ±0.1mm |
| Bending angle | (±7.5o or ±15o) ±0.3 o (1~90 o adjustable) |
| Load arm length | 200 ° ± 20 ° / min |
| Printout | modular one-piece thermal printer |
| Data display | 5.7in LCD display with graph display |
| Printout | Thermal Printer |
| Working environment | temperature (20 ± 10) ° C, humidity <85% |
| Dimensions | 340*330m*340mm |
| Weight | 15kg |
