Place of Origin: | CHINA |
Brand Name: | SKYLINE |
Certification: | Calibration certificate |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoitable |
Packaging Details: | Plywood case |
Delivery Time: | 35 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1 unit |
SKYLINE: | Tear Strength Tester | Measuring Range: | 10mN ~ 16000mN |
---|---|---|---|
Resolution: | 0.1mN | Accuracy: | ±1.0% |
Tear Arm: | 104 Mm ±1 Mm | Initial Tear Angle: | 27.5 ° ± 0.5 ° |
High Light: | abrasion testing equipment,physical testing equipment |

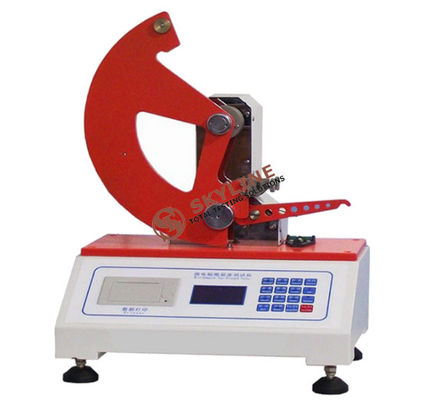

Tear Tester Paper Tear Strength Tester
Product information
The tear strength tester can mainly measure the tensile force, tear, peeling, adhesion of various materials... resistance properties. Print test date, time and
The display value set by the display. The tear strength tester can be equipped with a variety of fixtures and elongation test devices, or assembled according to customer needs.
Suitable for various food packaging, textile, rubber, plastic, synthetic leather and other industries, materials and products for tensile, peeling, tearing and other tests
Features
1. It consists of pendulum bracket, fan-shaped pendulum body, pendulum shaft, fixed fixture, movable fixture, weight gain weight, punching knife and pendulum release mechanism;
2, The pointer shows that the customer can get the test result through the pointer;
3, Easy to operate, easy to learn;
4, Mainly composed of load cell, transmitter, microprocessor, load-driven machinery, etc., high test accuracy
Standard
ASTM D903, CNS-11888, JIS K6854, PSTC-7
Technical Parameters
Measuring range | 10mN ~ 16000mN |
Resolution | 0.1mN |
Accuracy | ±1.0% |
Tear arm | 104 mm ±1 mm |
Initial tear angle | 27.5 ° ± 0.5 ° |
Distance between the paper holders | 2.8 mm ±0.3mm |
Sample cut length | 20 mm ± 0.5 mm |
Tearing distance | 43±0.5mm |
Paper size | 25*15mm |
Fixture | pneumatic clamp |
Man-machine interface | 3.2in LCD display, real-time display test data |
Printout | Thermal Printer |
Working environment temperature | (0~35) °C, humidity <85% |
Dimensions | 510*400*365mm |
Working environment | temperature (20 ± 10) ° C, humidity <85% |
Power suppl | AC220V 50Hz |
