Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| SKYLINE: | Interlayer Bonding Strength Tester | Impact Angle Punch Angle: | 90° |
|---|---|---|---|
| Resolution: | 0.001lbf/in2 | Sensor: | SH30-5000-2V |
| Sample Size: | 25.4mm × 25.4mm | Sample Clamping Force: | 0~40kg/cm2 (adjustable) |
| High Light: | physical testing equipment,brake testing equipment |
||

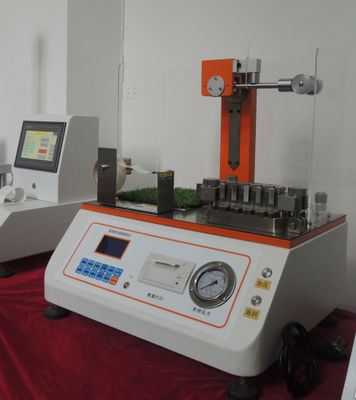

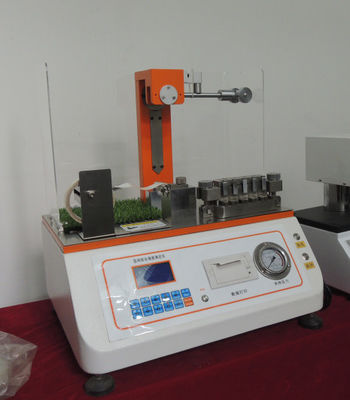

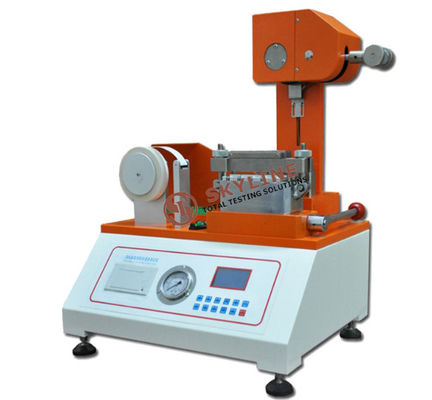

Interlayer Bonding Strength Tester
Use
The interlaminar bond strength tester is a special test instrument for testing the tensile strength (ie, the internal bond strength or the interlaminar bond strength) of paper and paperboard.
Test principle

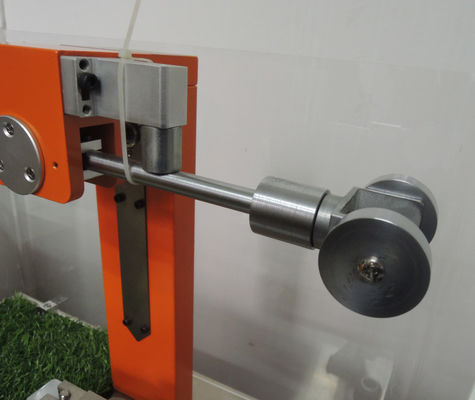

The energy absorbed by the test piece of the test paper after being impacted by a certain angle and weight, and showing the strength of peeling between the layers of the paperboard.
It is mainly suitable for the determination of the bonding strength between various types of paper surface layers. It is an ideal testing equipment for paper tube production enterprises, quality inspection agencies and other departments.
Technical parameters
| Impact angle Punch angle | 90° |
| Resolution | 0.001lbf/in2 |
| Measurement range | A range: (20-500) J/m2,B range: (500~1000) J/m2. |
| Display value error | A range: ±1J/m2, B range: ±2J/m2 |
| Sensor | SH30-5000-2V |
| Sample size | 25.4mm × 25.4mm |

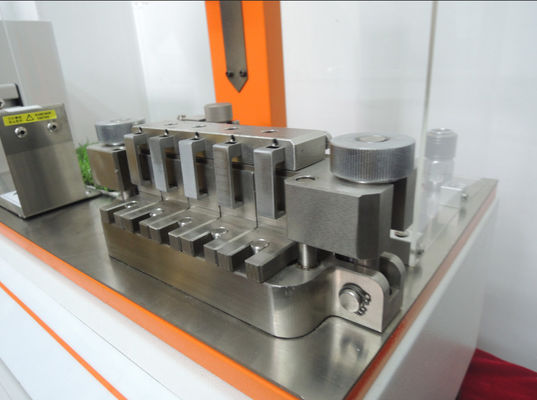

| Sample clamping force | 0~40kg/cm2 (adjustable) |
| Unit | J/m2, lbf/in2 |
| Interface | 3.2in LCD display |
| Printing | Modular integrated thermal printer |
| Power supply | AC220V±22V, 50Hz, maximum current 3A, the power supply should be reliably grounded |
| Appearance size | 52cm × 42cm × 70cm |
| Weight | 62kg |
