Name: SI518 ASTM Foam Drop Ball Elasticity Tester with Automatic Calculation of Average Rebound Height
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.6 (146 reviews)

Home Products Lab Testing Equipment

SI518 ASTM Foam Drop Ball Elasticity Tester with Automatic Calculation of Average Rebound Height

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Foam-Drop-Ball-Elasticity-Tester	Steel Ball Diameter:	Φ16±0.05 Mm
Sphere Weight:	16.3g	Falling Ball Rebound Rate Accuracy:	1.5
The Tested Sample Size:	380mm(L)×380mm(W)×100mm(H)	Power:	220V 50HZ
Highlight:	physical testing equipment , brake testing equipment

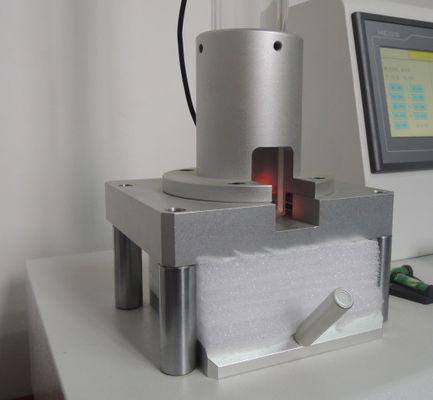

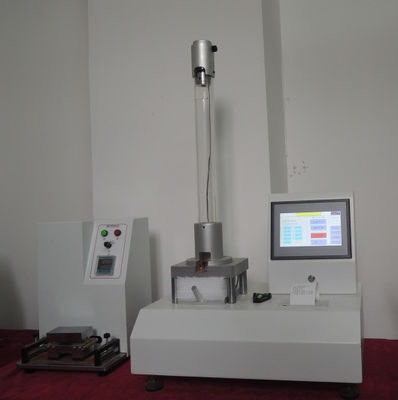

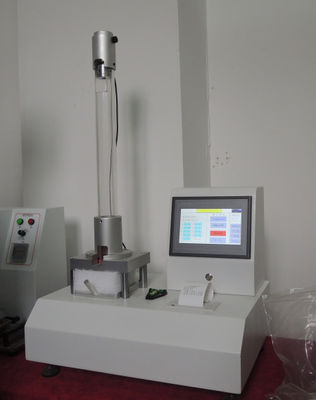

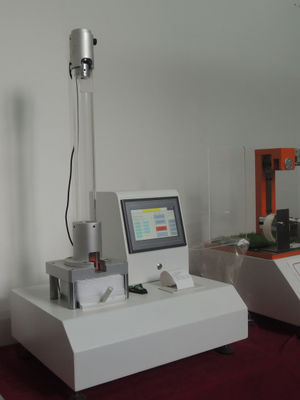

Foam Drop Ball Elasticity Tester

Use

The instrument for determining the rebound height is mainly used to determine the rebound resilience (rebound coefficient) in the polyurethane elastic material test item.

Technical parameters

Internal tube diameter is 38 mm and made of tranparant plastic.
distance from the bottom edge of the tube to the 0% distance is 16 mm.

Instrument test resolution: 1/10000 seconds

Rebound coefficient measurement range: 25%-80%
Ball falling distance: 457±0.5%mm 473±0.5%mm
Steel Ball diameter: Φ16±0.05 mm
Sphere weight : 16.3g
Falling ball rebound rate accuracy: 1.5
The tested sample size: 380mm(L)×380mm(W)×100mm(H)
Standards:
Israel Standard SI518 ASTM(American standard)D3574 and ISO8307

Power: 220V 50HZ

Automatic calculation of average rebound height

Automatic calculation of average rebound rate configuration
