Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-P28 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| SKYLINE: | Compressive Strength Testing Machine | Resolution: | 1N |
|---|---|---|---|
| Measurement Range: | (50 ~ 30000) N | Deformation Error: | ≤ ±1 Mm |
| Pressing Plate Area: | 1000 × 1200 Mm | Working Stroke: | (40 ~ 1200) Mm |
| High Light: | physical testing equipment,brake testing equipment |
||

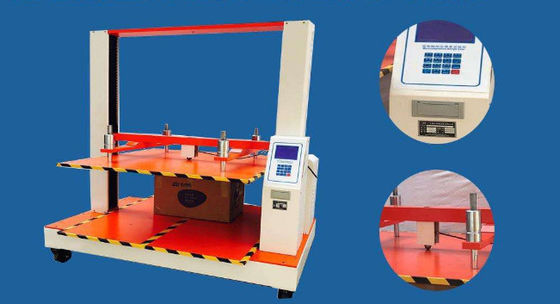

Compressive Strength Testing Machine
Technical parameters
| Power source | AC220V±10% 5A 50Hz |
| Display value error | ±1% |
| Indication value variability | ≤ 1% |
| Resolution | 1N |
| Measurement range | (50 ~ 30000) N |
| Deformation error | ≤ ±1 mm |
| Pressing plate area | 1000 × 1200 mm |
| The parallelism of the slab | ≤ 2 mm |
| Working stroke | 40 ~ 1200) mm |
| Test speed | (10 ± 1) mm / min (5 ~ 100mm / min can be set) |
| Return speed | (5 ~ 100) mm / min; |
| Human machine interface | 5-inch touch screen with curve display, Chinese and English menu |
| Communication output | RS232 (standard) / USB (optional) |
| Working environment | indoor temperature (20 ± 10 ) ° C; relative humidity < 85% |
| Dimensions | (1036 × 1200 × 1919) mm (length × width × height) |
| Printout | modular integrated thermal printer |
| Weight | about 500 kg |
