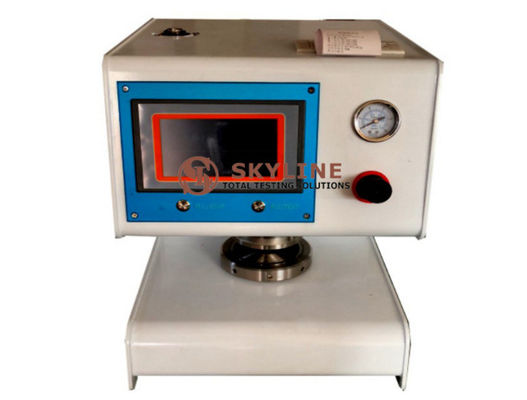

HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine

HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine

  • HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine
  • HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine
HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Automatic Burst Strength Testing Machine Indication Value Variability: ≤0.5%
Resolution: 0.01kpa Measuring Range: (50 ~ 1400) KPa
Oil Quantity: (95±5)mL/min Clamp Holding Capacity: ≤ 1200kPa (adjustable)
High Light:

abrasion testing equipment

,

physical testing equipment

Automatic Burst Strength Testing Machine



Produt information

Fully automatic burst strength testing machine for the determination of various paperboard and single and multi-layer corrugated board, as well as for the resistance of non-paper materials such as silk and cotton.
Strength test.
Operation method: as long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, instrument
Display with numbers and automatically print test results and data processing.


Features
1. After the cardboard is crushed, it will automatically stop and return to the initial position;
2. Fully automatic one-button operation;
3. Can store data at the same time;
4. With micro printing, the test results can be printed;
5. Equipped with emergency stop button to improve operation safety;
6. With pneumatic pressure gauge, monitor pressure at any time;
7. HD LCD display
8. The use of silicone oil instead of traditional glycerin refueling, good fluidity, not easy to block the oil circuit;
It does not contain water and will not cause corrosion of parts inside the machine and prolong the service life of the machine.

Environmental conditions for normal work
1. Room temperature: 20 ° C ± 10 ° C;
2. Power supply: AC220V±22V, 50Hz, maximum current 5A, the power supply should be reliably grounded.
If the power supply voltage fluctuates beyond the above range, a power regulator should be used;
3. The working environment is clean, no strong magnetic field and vibration source, and the worktable is stable and stable.



Technical parameter

 Power source  AC220V±10% 2A 50Hz
 Display value error  ±0.5%
 Indication value variability  ≤ 0.5%
 Resolution  0.1 kPa
 Measuring range  (50 ~ 1400) kPa
 Oil quantity  (95±5)mL/min
 Clamp holding capacity  ≤ 1200kPa (adjustable)
 Air compressor  pressure (0.6 ~ 0.7) MPa; displacement (0.02 ~ 0.3) m3 / min (non-standard);
 Silicone film  The pressure range is (30±5) kPa when the height is (9±0.2) mm;
 System sealing  pressure drop <10% FS within 1min
 Human machine interface  5-inch LCD screen or color touch screen, Chinese and English menu;
 Printout  Modular integrated thermal printer;
 Communication output  WAN port (optional) /RS232 (optional);
 Working environment  indoor temperature (20 ± 10 ) ° C; relative humidity < 85%;
 Dimensions  (400 × 350 × 500) mm (length × width × height)
 Weight  approx. 40 kg



HD LCD display (50 ~ 1400) kPa Automatic Burst Strength Testing Machine 0
