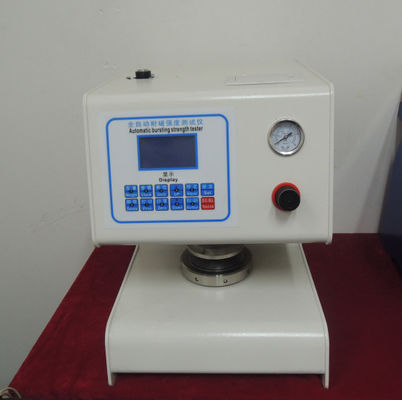

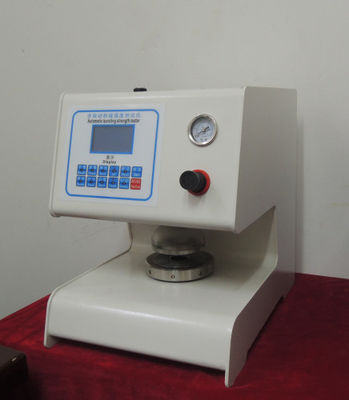

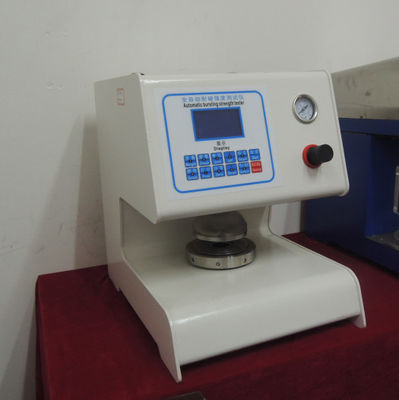

Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer

Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer

  • Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
  • Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
  • Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
  • Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
Measurement Range: 50~1400kpa Accuracy: ≤±0.5%
Resolution: 0.01kpa Deformation Error: ≤1mm
Oil Delivery Speed: 95±5ml/min Unit Conversion: Kg/cm2, Kpa, Lbf/in2
Highlight:

physical testing equipment

,

brake testing equipment

Keyboard Cardboard Burst Tester Burst Tester Paperboard Burst Burst Strength Tester


Product Introduction
Applicable to packaging materials, mainly used for the determination of various paperboard and single-layer and multi-layer corrugated board, but also for the test of the burst strength of non-paper materials such as silk and cotton. As long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, digital display of the instrument and automatic printing of test results and data processing.

Implementation standards
ISO2759-2001, JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPI T403


Technical parameters

 Measurement range  50~1400kpa
 Accuracy  ≤±0.5%
 Resolution  0.01kpa
 Deformation error  ≤1mm
 The concentricity of the upper and lower discs  ≤0.25mm
 Silicone film disk pressure  9mm (30 ± 5) kPa
 Oil delivery speed  95±5ml/min
 Platen diameter  diameter of the upper plate (30.5±0.1mm) diameter of the lower plate (33.1±0.1mm)
 Man-machine interface  3.4 in 320*240 dot matrix liquid crystal display, real-time display data changes
 Clamping force  400kpa~1200kpa (adjustable)
 Unit conversion  Kg/cm2, kpa, lbf/in2
 Printout  modular integrated thermal printer
 Dimensions  400-350*500mm
 Weight  42kg

  Working environment  temperature (20 ± 10) ° C, humidity <85%



Bursting strength Machine.pdf



Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer 0
