| SKYLINE: | Automatic Compression Strength Testing Machine | Measuring Range: | 0~3000N |
|---|---|---|---|
| Accuracy: | ≤±1% | Resolution: | 0.01N |
| Plate Parallelism: | ≤0.05mm | Test Speed: | 12.5±1mm/min |
| High Light: | abrasion testing equipment,brake testing equipment |
||

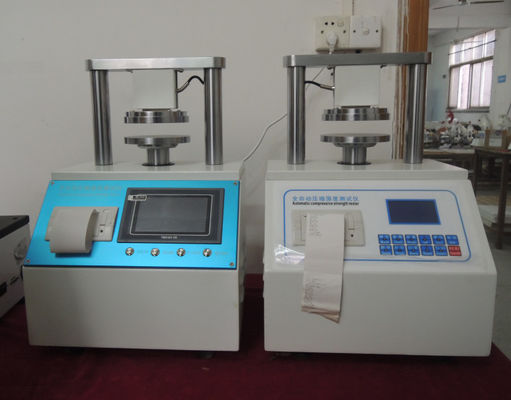

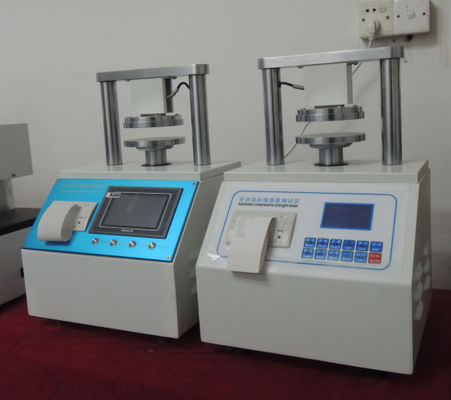

Automatic Compression Strength Testing Machine (Touch)
Product use
For paper packaging materials such as corrugated cardboard, a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general compression (CMT) Testing is a test device that combines multiple functions. This machine is equipped with various fixture accessories to test the ring pressure strength of the base paper, the flat/edge pressure strength of the paperboard, and the bonding strength, so that the paper production enterprises can control the production cost and improve the product quality.
Technical parameters

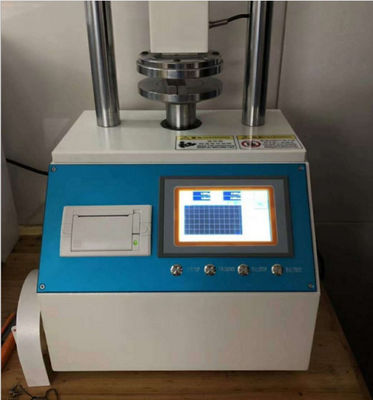

1. Man-machine interface: 5-inch touch screen display, real-time with curve display force value changes
2. Printout: modular integrated thermal printer with curve printing
3. Working environment: temperature (20 ± 10) ° C, humidity <85%
4. Volume: 500 × 270 × 520mm (W × D × H)
5. Weight: 55kg
6. Power: 1 ∮, AC220V, 1.5A
7. Standard configuration: a vertical pressure clamp
8. Optional configuration: parallel sampler; ring pressure sampler ring pressure fixture; flat pressure fixture; glue strength fixture
| Measurement range | 0~3000N |
| Accuracy | ≤±1% |
| Resolution | 0.01N |
| Plate parallelism | ≤0.05mm |
| Test speed | 12.5 ± 1mm / min |
| The upper pressure plate diameter | 124mm |
| Lower pressure plate diameter | 127mm |
| Test height interval | 55mm |
| Horsepower | 1/4HP |
