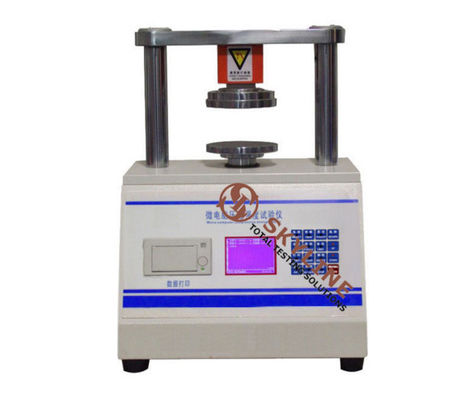

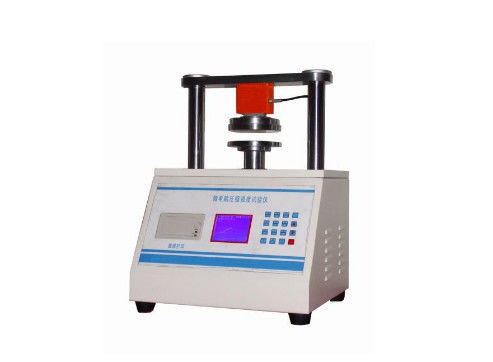

0~3000N Automatic Compression Strength Testing Machine ( Button )

0~3000N Automatic Compression Strength Testing Machine ( Button )

  • 0~3000N Automatic Compression Strength Testing Machine ( Button )
  • 0~3000N Automatic Compression Strength Testing Machine ( Button )
  • 0~3000N Automatic Compression Strength Testing Machine ( Button )
  • 0~3000N Automatic Compression Strength Testing Machine ( Button )
0~3000N Automatic Compression Strength Testing Machine ( Button )
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Automatic Compression Strength Testing Machine Measuring Range: 0~3000N
Accuracy: ≤±1% Resolution: 0.01N
Plate Parallelism: ≤0.05mm Test Speed: 12.5±1mm/min
High Light:

abrasion testing equipment

,

brake testing equipment

Automatic Compression Strength Testing Machine


Product usage
For paper packaging materials such as corrugated cardboard, a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general compression (CMT) Testing is a test device that combines multiple functions. This machine is equipped with various fixture accessories to test the ring pressure strength of the base paper, the flat/edge pressure strength of the paperboard, and the bonding strength, so that the paper production enterprises can control the production cost and improve the product quality.

Technical parameters

 Measuring range  0~3000N
 Accuracy  ≤±1%
 Resolution  0.01N
 Plate parallelism  ≤0.05mm
 Test speed  12.5±1mm/min
 Upper platen diameter  124mm
 Lower platen diameter  127mm
 Test height interval  55mm
 Man-machine interface  3.2 in 320*240 dot matrix liquid crystal display, real-time display of force value changes
 Printout  modular integrated thermal printer
 Working environment  temperature (20 ± 10) ° C, humidity <85%



0~3000N Automatic Compression Strength Testing Machine ( Button ) 0
