Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | Calibration certificate |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoitable |
Packaging Details: | Plywood case |
Delivery Time: | 15 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1 unit |
Indication Variability: | ≤0.5% | Resolution: | 0.01 KPa |
---|---|---|---|
Measuring Range: | ≤ 5600 KPa | The Amount Of Oil Delivered: | 170 ± 15 Ml / Min |
Clamping Force: | ≤ 1200 KPa (adjustable) | Power Source: | AC220V±10% 2A 50Hz |
High Light: | abrasion testing equipment,physical testing equipment |

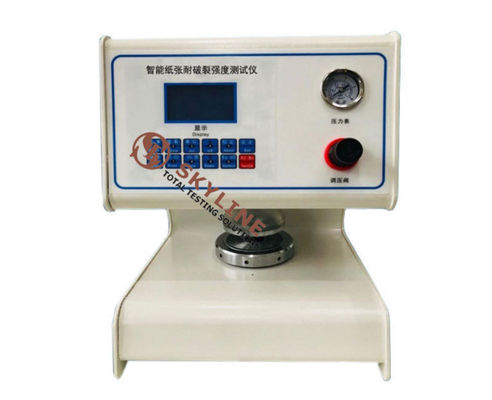

Keyboard Cardboard Burst Tester Burst Tester Paperboard Burst Burst Strength Tester
Product Introduction
Applicable to packaging materials, mainly used for the determination of various paperboard and single-layer and multi-layer corrugated board, but also for the test of the burst strength of non-paper materials such as silk and cotton. As long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, digital display of the instrument and automatic printing of test results and data processing.
Implementation standards
ISO2759-2001, ASTM-D2210, JIS-L1004, L1018, L1031, K6328, P8131, P8112 and TAPPI T403,
Technical Parameters
1. Air compressor: rated pressure (0.6 ~ 0.7) MPa; exhaust volume (0.02 ~ 0.3) m3 / min (non-standard);
2. Film: the height of the protrusion (10 ± 0.2) mm when the pressure range is (170 ~ 220) kPa;
3. The pressure range is from 250 kPa to 350 kPa when the height is raised (18 ± 0.2) mm;
4. System sealing: pressure drop <10% FS within 1min;
5. Man-machine interface: 3.4 in 320 * 240 dot matrix liquid crystal display, real-time display data changes
6. The upper pressure plate: made of acrylic, you can clearly see the state of the film bulging.
7. Printout: modular integrated thermal printer;
8. Working environment: indoor temperature (20 ± 10) ° C; relative humidity <85%
Indication error | ±0.5%; |
Indication variability | ≤0.5%; |
Resolution | 0.01 kPa; |
Measuring range | ≤ 5600 kPa; |
The amount of oil delivered: | 170 ± 15 ml / min; |
Clamping force | ≤ 1200 kPa (adjustable); |
Unit conversion | Kg / cm2, kpa, lbf / in2 |
Dimensions(L*W*H) | (428 × 318 × 412) mm |
Weight | about 50kg |
Power source | AC220V±10% 2A 50Hz; |
