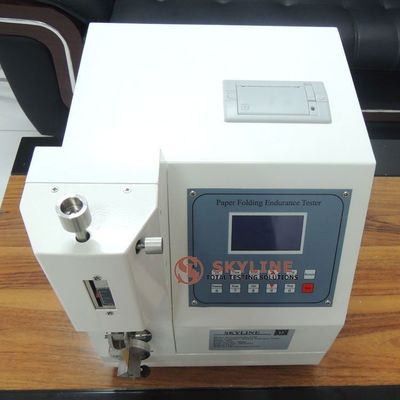

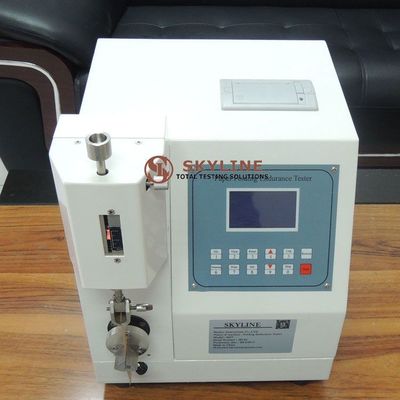

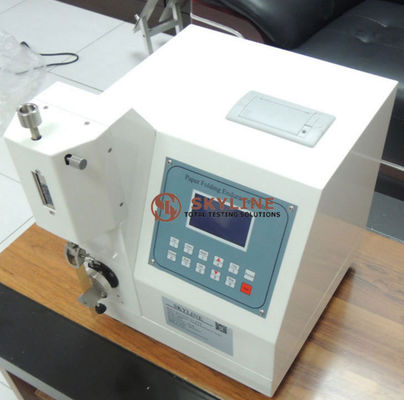

SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine

SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine

  • SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine
  • SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine
  • SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine
SL - L55 Folding Speed Of (175±10) Times / Min Paper Board Folding And Bursting Strength Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L55
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 pcs / month
Contact Now
Detailed Product Description
SKYLINE: Paper Board Folding And Bursting Strength Testing Machine Measuring Range: 1 ~ 99999 Times
Folding Angle: 135 ° ± 2 ° Folding Speed: (175±10) Times/min
Tension Adjustment Range: 4.9N ~ 14.7N Power Supply: AC220V±10%50Hz
Highlight:

abrasion testing equipment

,

brake testing equipment

Paper Board Folding and Bursting Strength Testing Machine



Product usage
The MIT Folding Tester complies with relevant standards and is suitable for measuring the folding fatigue resistance of paper, cardboard and other sheet materials with a thickness of less than 1 mm. The instrument uses photoelectric control technology to make the folding collet automatically return after each experiment, which is convenient for the next operation.

The main technical parameters

 Measuring range  1 to 99999 times
 Folding angle  135 ° ± 2 °
 Folding speed  (175±10) times/min
 Tension adjustment range  4.9N ~ 14.7N
 Folding head stitching specifications  0.25mm, 0.50mm, 0.75mm, 1.00mm (included)
 Working power supply  AC220V±10%50Hz
 Working environment  temperature 0 ~ 40 ° C, relative humidity does not exceed 85%
 Dimensions  390 mm (length) × 305 mm (width) × 440 mm (height)
 Instrument net weight  36kg


Executive standard
ISO 5626: Determination of pleat resistance of paper
QB/T 1049: Paper and cardboard folding resistance meter
