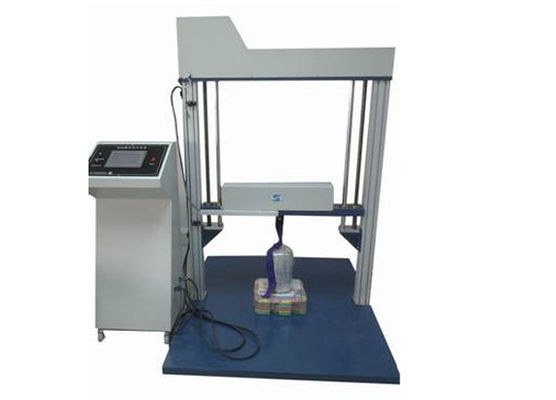

Walker Seat Structure Strength Testing Machine / Baby Carriage Testing Machine

Walker Seat Structure Strength Testing Machine / Baby Carriage Testing Machine

  • Walker Seat Structure Strength Testing Machine / Baby Carriage Testing Machine
Walker Seat Structure Strength Testing Machine / Baby Carriage Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Walker Seat Structure Strength Testing Machine Height: 0-300mm, Arbitrarily Set
Height Control: ±1mm Control System: PLC
Display: 7 Inch Touch Screen
Highlight:

physical testing equipment

,

brake testing equipment

SL-C08 Walker Seat Strength Testing Machine


Use
Used to test the structural strength of the walker seat.


Test Methods
Adjust the seat to the lowest point; hold the test weight A to the distance of 60mm above the center of the seat, release the test weight A, let it fall freely, impact the seat, the impact test is performed 100 times.
Standards compliant:
GB 14749-2006 "Baby Walker Safety Requirements"
EN 1273:2005 "Child care products - Safety requirements and test methods for baby walkers"
ANSI Z315.1 American National Standards Institute (ANSI)
ASTM F977: 2007 Safety Specification for Baby Walkers


Technical Parameters
1) Height 0-300mm, arbitrarily set
2) Convenient and quick fixture
3) Electromagnetic clutching method impact test
4) Standard weight weight
5) Height control: ±1mm
6) Automatic alarm shutdown when the sample is damaged
7) Control system: PLC
8) Display: 7 inch touch screen



Tag:

physical testing equipment,

brake testing equipment,

abrasion testing equipment
