BIFMA X5.1 2011 17 Chair Caster Base Endurance Testing Machine With Drive Mode Cylinder Drive

BIFMA X5.1 2011 17 Chair Caster Base Endurance Testing Machine With Drive Mode Cylinder Drive

  • BIFMA X5.1 2011 17 Chair Caster Base Endurance Testing Machine With Drive Mode Cylinder Drive
BIFMA X5.1 2011 17 Chair Caster Base Endurance Testing Machine With Drive Mode Cylinder Drive
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: BIFMA X5.1 2011 17; BS EN 1335-3: 2009 7.3.5.
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Chair Caster Base Endurance Testing Machine Loading Weight: 102kg
Movement Stroke: 800mm Drive Mode: Cylinder Drive
Test Speed: 10±2 Times/min Counter: 0~999999 Times Can Be Set;
Highlight:

furniture testing machine

,

chair testing machine

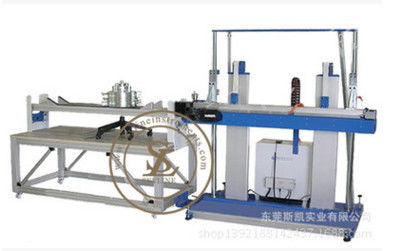

SL-T10 Chair Caster Base Endurance Testing Machine


Uses

This test machine simulates the situation encountered during the movement of the chair with casters during daily use. It evaluates the fatigue pressure and wear capacity of the casters and bases subjected to the forward and backward movement of the chair.


Conforms to standards

BIFMA X5.1 2011 17; BS EN 1335-3: 2009 7.3.5.


Technical Parameters

 Loading weight  102kg, cumulative
 Movement stroke  800mm
 Barrier block  width 51mm, thickness 3.2mm, three pieces, detachable
 Drive mode  cylinder drive
 Test speed  10±2 times/min
 Number of tests  2000 obstacles, 98000 barrier-free
 Counter  0~999999 times can be set
 Gas source  6kgf/cm^2 or more stable gas source
 Power  1Ф, AC220V, 3A



Tag:

chair testing machine,

furniture testing machine,

stability testing equipment
