Chair Front End Stability Tester for Testing the Front End Stability of Seat

Chair Front End Stability Tester for Testing the Front End Stability of Seat

  • Chair Front End Stability Tester for Testing the Front End Stability of Seat
Chair Front End Stability Tester for Testing the Front End Stability of Seat
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: ANSI/BIFMX5.1-10/15/16/18/12.3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Chair Back Durability Test Seat Loading: Max.: 600N
Pull Force: 20N Weight (approx.): ≈200Kg
Volume (WxDxH): 100x140x105cm Gas Source: ≥6kgf/cm2 Stable Gas Source.
Highlight:

furniture testing machine

,

chair testing machine

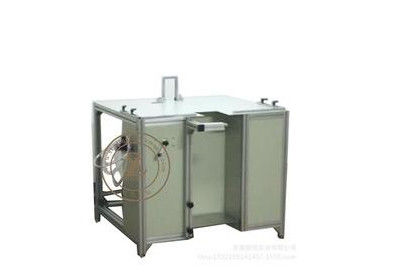

SL-T32 Chair Front End Stability Tester


Use
This machine is suitable for testing the front end stability of seat (such as chair, office chair).
Standards compliant:
ANSI/BIFMA X5.1-2011 12.4;
BS EN 1335-3:2009 7.1.1;
BS EN 1335-3:2009 7.1.2

Principle
Place the test piece on the test surface, block the front foot with the stopper, apply a certain load on the seat surface, apply a force of 20N forward at the loading point, and check whether the test piece is tilted forward to evaluate the forward stability of the test piece. Sex

Technical Parameters

 Seat loading  Max.: 600N, cumulative
 Pull force  20N
 Loading point position  the center position of the seat surface, 60mm from the leading edge
 Seat loading pad  diameter: 200mm, curved surface: R300mm
 Loading rod: diameter  19mm, both ends: type A: spherical surface SR9.5mm/B type: pointed surface 45°
 Weight basket promotion  manual control
 Weight (approx.)  ≈200Kg
 Volume (WxDxH)  100x140x105cm
 Gas source  ≥6kgf/cm2 stable gas source



Tag:

chair testing machine,

furniture testing machine,

stability testing equipment
