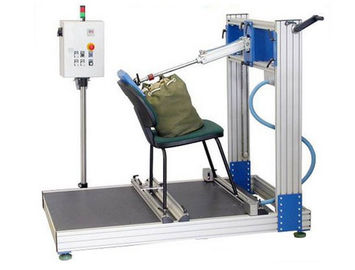

ANSI / BIFMX5.1-10 Furniture Testing Equipment Chair Back Durability Testing Equipment

ANSI / BIFMX5.1-10 Furniture Testing Equipment Chair Back Durability Testing Equipment

ANSI / BIFMX5.1-10 Furniture Testing Equipment Chair Back Durability Testing Equipment
ANSI / BIFMX5.1-10 Furniture Testing Equipment Chair Back Durability Testing Equipment
ANSI / BIFMX5.1-10 Furniture Testing Equipment Chair Back Durability Testing Equipment
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: ANSI/BIFMX5.1-10/15/16/18/12.3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Chair Back Durability Test Seat Loading: 102kg (225Lb)
Backrest Loading Force Value: 334N (75Lb) / 445N (100Lb) Test Speed: 10~30 Times/min
Number Of Tests: 80000/120000 Times Counter: 0~999 999 Times Can Be Set
Highlight:

furniture testing machine

,

chair testing machine

Chair Back Durability Test



Use
It is used to simulate the situation where people in daily life sit back and lean back against the backrest of the chair. It is suitable for evaluating the fatigue pressure and wear capacity of the chair caused by the force of the backrest.

Standard
ANSI/BIFMX5.1-10/15/16/18/12.3


Technical parameters

 Seat loading  102kg (225Lb), weight accumulative
 Backrest loading force value  334N (75Lb) / 445N (100Lb)
 Backrest loading position  When the backrest height is greater than 452mm: 406mm, when the backrest height is less than 452mm: Load the top of the backrest
 Backrest loading force direction  The angle between the output direction and the backrest surface is 90°±10°
 Test speed  10~30 times/min
 Number of tests  80000/120000 times
 Counter  0~999 999 times can be set
 Force adjustment method  Adjust the air pressure + power sensor
 Motion control  PLC control, text display
 Volume (W*D*H)  120*100*130cm
 Gas source  6kgf/cm^2 or more stable gas source
 Power supply  1Ф, AC220V, 3A


Related configuration
Cylinder: cylinder diameter 50mm, stroke 300mm
Bracket: industrial high-strength aluminum profile, 80mmx40mm
