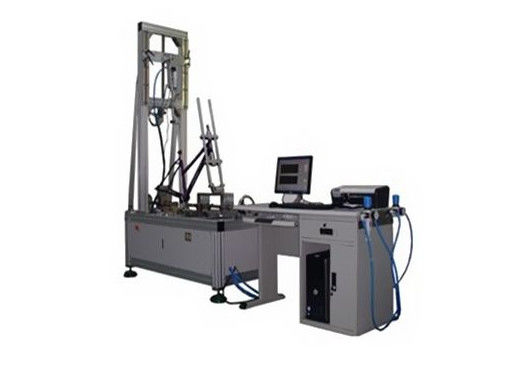

Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester / Bicycle Rear Triangle Life Testing Machine

Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester / Bicycle Rear Triangle Life Testing Machine

  • Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester / Bicycle Rear Triangle Life Testing Machine
Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester / Bicycle Rear Triangle Life Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester Applicable Frame: 12”～29”
Test Frequency: 0~5Hz Adjustable Test Angle: 0~10° Adjustable
Load Capacity: 250kgf Test Force: 500 ~ 1500N Adjustable
Air Source: 7kgf Per Cm^2 Power Supply: 220V 50Hz
Highlight:

abrasion testing equipment

,

brake testing equipment

Bicycle Frame Rear Triangular Vertical Dynamic Fatigue Tester



The structure of the bicycle frame life tester

The structure of the bicycle is divided into basic components and accessory components. Basic components: frame, front fork, handlebar, front and rear axle, chain, flywheel, saddle, brakes and other 16 components. Auxiliary parts: 9 parts including chain cover, hanger, bracket, bell, and lock. The above structure can be tested with the corresponding test machine



Design standards: EN, GB, JIS



Technical parameters

 Applicable frame  12”～29”
 Power control accuracy  ±1% (static) 0 to +5% (dynamic)
 Test frequency  0~5Hz adjustable
 Test angle  0~10° adjustable
 Load capacity  250kgf
 Test force  500 ~ 1500N adjustable
 Display mode  full computer digital display
 Control method  pneumatic servo control
 Number of tests  0 to 999,999 times can be set
 Air source  7kgf per cm^2
 Power supply  220V 50Hz
