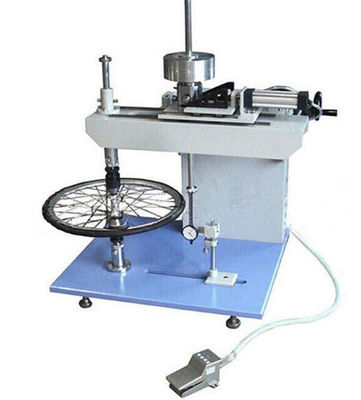

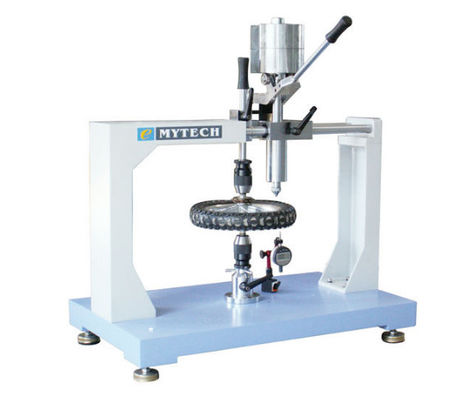

ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test

ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test

  • ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test
  • ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test
ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Bicycle Wheel Axial Static Load Testing Machine Standard: BS ISO8098, EN14781, ISO4210, BS EN1476
Load Weight: 178N Cylinder Falling Speed: 2mm Per Second
Dimensions: 1035 × 500 × 900mm Power Consumption: 100W
Highlight:

physical testing equipment

,

brake testing equipment

Bicycle Wheel Axial Static Load Testing Machine



Product introduction

The equipment is designed according to the requirements of ISO4210 and GB3565-83 for the axial load test of the wheel. It is suitable for the axial load test of bicycle wheels of various specifications and models. The basic structure is mechanical clamping of the wheel and convenient for clamping. The cylinder lifting weight is used to automatically control the loading time to achieve the test purpose. The device structure itself considers the accurate positioning and measurement method of the device under test.



Use

Suitable for axial load test of bicycle wheels of various specifications and models.



Principle

This machine is to fix the wheel axle of the wheel on the chuck. Then apply a certain load to the wheel rim and observe the deformation. The test machine meets the requirements of GB14746-2006 4.8.



According to the standard

BS ISO8098, EN14781, ISO4210, BS EN14765



Technical parameter

 Scope of application  various bicycle wheels of 510-710mm
 Load weight  178N
 Cylinder falling speed  2mm per second
 Dimensions  1035 × 500 × 900mm
 Weight  about 50kg
 Power consumption  100W
 Gas consumption  0.007 cubic meters / minute; pressure: 6 kg / cubic centimeter



ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test 0
