Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 pcs/ month |
| SKYLINE: | Bicycle Wheel Brake Fatigue Testing Machine | Load: | 0—2000N (direct Pressure Type) |
|---|---|---|---|
| Obstacle Angle: | 45 Degree | Obstacle Height: | 2mm/2, 3mm/2 Or 5mm/2 |
| Speed: | 0.05~5000m/h | Pallet Lifting Range: | 50~200mm |
| Speed Unit: | KM/H, M/S | Control Box Size: | 950*450*330mm |
| High Light: | abrasion testing equipment,physical testing equipment |
||

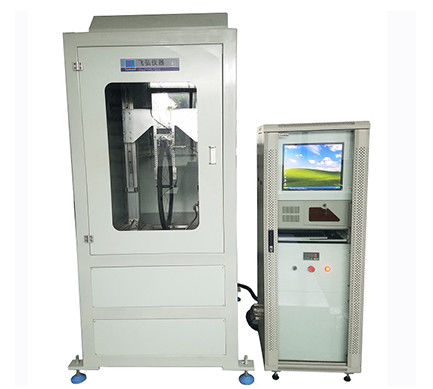

Bicycle Wheel Brake Fatigue Testing Machine
Product manual
The test machine drives the measured rim with a large revolver as the driving wheel, and can perform the "brake dry and wet state test", "dynamic walking test", "brake performance test", "wheel static pressure test" and "deflection test". With industrial computer control, you can print test results with a micro printer. The application of the load is carried out by using a weight-added direct-pressure type to more realistically simulate its test environment and state;
Test standard
EN14764:2005, ISO4210-2014
Technical parameters
| Load | 0—2000N (direct pressure type) |
| Obstacle height | 2mm/2, 3mm/2 or 5mm/2 |
| Obstacle angle | 45 degree |
| Direction of operation | Support positive and negative |
| Speed | 0.05~5000m/h |
| Pallet lifting range | 50~200mm |
| Speed unit | KM/H, M/S |
| Control box size | 950*450*330mm |
| Main box size (WxDxH) | 2.9*1.2*2.5m |
| Weight | About 320kg |
Contact Person: Kasey Xie
Tel: 18370826024
