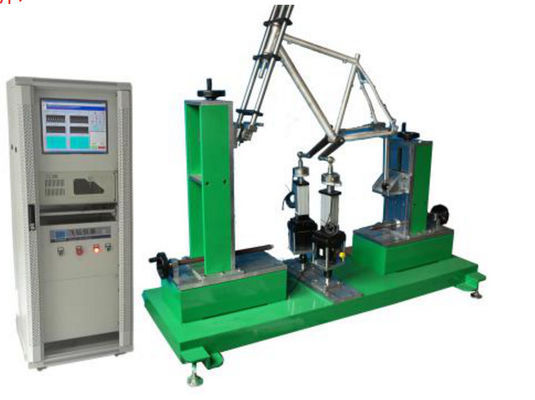

EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue

EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue

  • EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue
  • EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue
EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Frame-Pedal-Fatigue-Testing-Machine Capacity (kgf): 500
Test Force Value Accuracy: ±3% Maximum Working Amplitude ( Mm ): ±100
Motion Detector: LVDT Accuracy ±0 . 01 Mm Power Source: Servo Electric Cylinder Controllable
Frequency Range: 1HZ~15HZ Adjustable Power Supply: AC220V, 15A
High Light:

abrasion testing equipment

,

physical testing equipment

Frame Pedal Fatigue Testing Machine



Product usage

The frame fatigue dynamic fatigue life tester is designed for the bicycle frame fatigue resistance test standard, and the double electric cylinder is used for applying force. The bicycle frame is mounted on the test fixture and fixed, and a certain frequency, load and test times are applied thereto. The fatigue applied force is judged by checking the damage degree of the sample after the test.



Standard test

DIN79100, EN14764:2005, ISO4210:2014, JIS D9416-2004 BA, CNS B7063 CNS B7011, JIS D9301-2004



Technical parameters

 Capacity (kgf)  500
 Test force value accuracy  ±3%
 Maximum working amplitude ( mm )  ±100
 Motion detector  LVDT accuracy ±0 . 01 mm
 Power source  Servo electric cylinder controllable
 Frequency Range  1HZ~15HZ adjustable
 Dimensions  195*45*90 (cm)
 Weight (about)  160 (Kg)
 Power supply  AC220V, 15A



EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue 0
