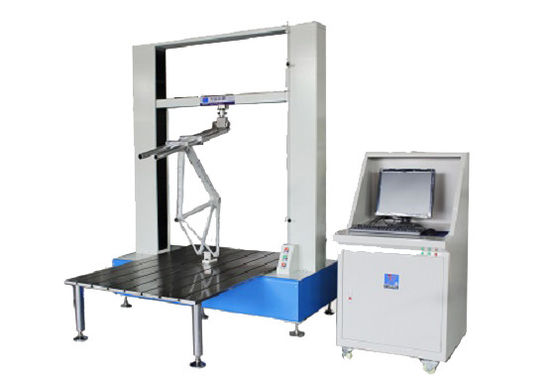

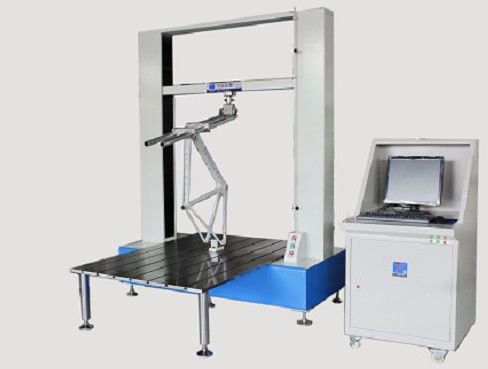

Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles

Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles

  • Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles
  • Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles
Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Bicycle-Universal-Material-Testing-Machine Measuring Range: 5000kgf
Measurement Accuracy: 1/2000000 Maximum Load: 5000 (KN)
Type: Electrohydraulic Pressure Testing Machine Weight: 350 (kg)
Highlight:

physical testing equipment

,

brake testing equipment

Bicycle Universal Material Testing Machine



Product information

Bicycle universal material testing machine rim parts tensile and compressive torque strength testing machine manufacturing through ISO-9001 international quality certification in line with the requirements: ISO 7500 / 1, EN 1002-2, BS 1610, DIN 5122, ASTME4, JIS B7721 / B 7733, CNS 9471 / 9470, JJG 475-88 and other national testing equipment testing standards.



Application

It is suitable for all parts and materials of bicycles. It is used for strength testing and testing of tensile, compressive and torsion, and has complete functions and wide applications.



Technical parameter

 Load capacity  5,000kgf
 Unit switching  Strength: N/kN/g/kg/ton/lb, displacement: mm/cm/inch
 Load resolution  1/20,0000
 Load accuracy  ±0.5%
 Power magnification  ×10%, ×20%, ×50%, ×100% automatic magnification segmentation
 Test width  1200mm
 Board travel  1400mm
 Test stroke  the length of the joint stroke minus the upper and lower clamps and the length of the test piece
 Test speed range  0.01 ~ 500mm / min
 Displacement resolution  0.01mm
 Power control  servo motor, servo drive
 Dimensions (WxDxH)  2250 × 1800 × 2300mm
 Weight (approx.)  1400kg
 Power supply  1∮, AC220V, 15A (or specified by country)
