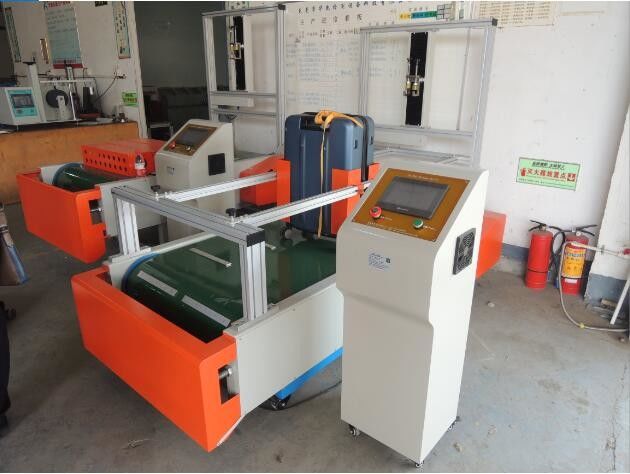

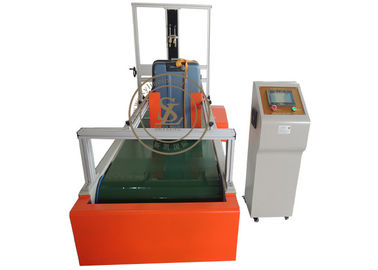

0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory

0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory

0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory
0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory
0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: calibration certificate
Model Number: SL-TL01
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 35 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Luggage Walking Fatigue Testing Equipment Test Speed: 0~5km/hr Adjustable
Bump Board: 5mm / 8 Pieces Belt Circumference: 380cm
Belt Width: 76cm Machine Size: 220 × 180 × 160cm
Weight: 360Kg Power Supply: 1∮, 220V/50HZ
Highlight:

abrasion testing equipment

,

brake testing equipment

Luggage Walking Fatigue Testing Equipment



Product introduction
This machine is used for the walking test of suitcases, travel bags, baby carriages with wheels, testing the quality of the use of the luggage wheel during walking, testing the mileage and testing speed to check the heat resistance and cracking of the luggage wheel. And the amount of loss, the wear resistance of the wheel material and the overall structure of the box are tested for damage and deformation, and the results of the test are available for improvement.
Design standard: QB/T 2920-2007



Technical parameter

 Time setting  0 to 999.9 hours, power failure memory type
 Test speed  0~5km/hr adjustable
 Belt circumference  380cm
 Belt width  76cm
 Bump board  5mm / 8 pieces
 Machine size  220 × 180 × 160cm
 Weight  360Kg
 Power supply  1∮, 220V/50HZ
 Accessories  suitcase fixed adjustment seat



0~5km / Hr Adjustable Luggage Walking Fatigue Testing Equipment With Power Failure Memory 0

Tag:

physical testing equipment,

brake testing equipment,

abrasion testing equipment
