Name: ASTM F 963 4.6.2 Aluminum Alloy Small Ball Test Fixture to Test Toys Equipment for Children
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S26
Price: 4,500.00 USD
Availability: InStock

Home Products Toys Testing Equipment

ASTM F 963 4.6.2 Aluminum Alloy Small Ball Test Fixture to Test Toys Equipment for Children

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-S26

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Carton box
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Small Ball Test Fixture	Standards:	ASTM F 963 4.6.2
Material:	Aluminum Alloy	Volume:	72.6 × 72.6 × 6.35 Mm
Weight:	64 G
Highlight:	stability test chamber , swing durability tester

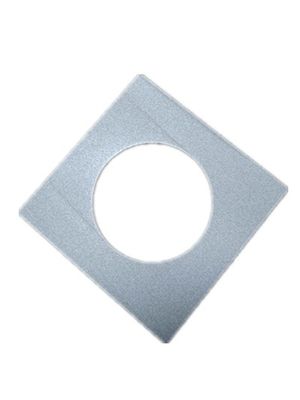

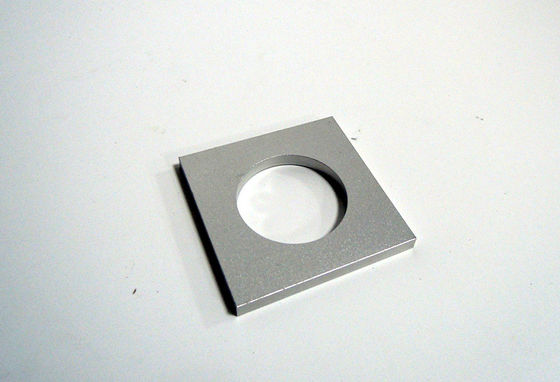

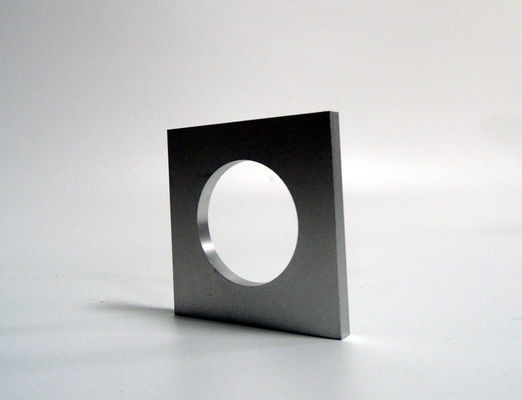

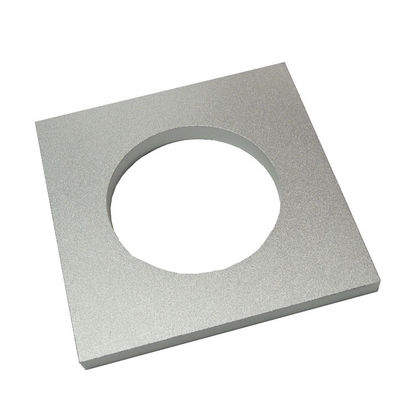

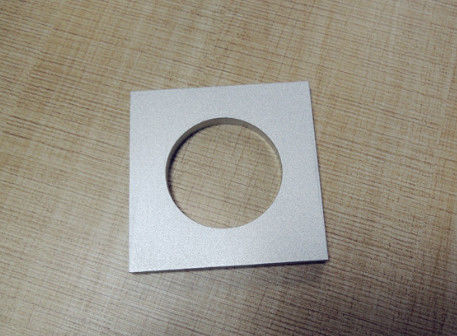

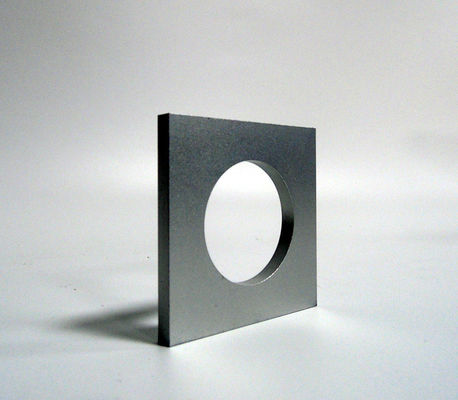

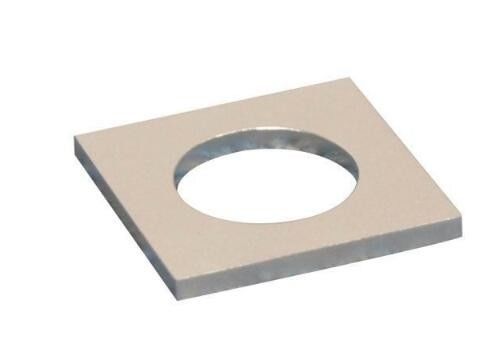

Small Ball Test Fixture

Use
Small ball test fixture is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not

Standard test

US 16CFR 1510, ASTM F 963 4.6.2, EU EN71-1998 8.16.

Parameter

Material: Aluminum alloy

Volume: 72.6 × 72.6 × 6.35 mm

Weight: 64 g

How to use and understand

1. Place the ball in the position where it is most likely to be allowed to pass the ball test template slot, and ensure that the force acting on the ball is only its gravity to determine whether the ball can completely pass the test template;

2, in the ball test, you must first determine the age of the toy, and then test;

3. Age limit:

(1) Under 36 months, small balls are not allowed on the toy;

(2) 37 months to 96 months, there may be small balls on the toy, but there must be warning instructions;

(3) For more than 97 months, there may be small balls and no warning instructions are required.

Tag:

Contact Person: Charlie

Tel: 13310806019

Fax: 86-769-38818154
