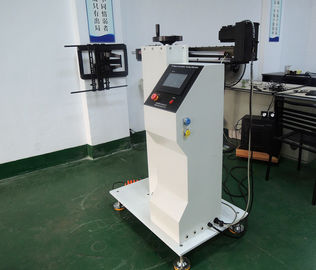

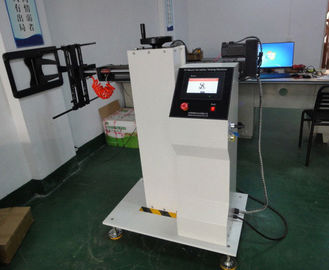

Lab Testing Equipment ANSI / BIFMA X5.5-2014 Desk Drawer Slides Durability Testing Equipment

PLC / HMI Table Slides Durability Furniture Testing Equipment with Servo Linear Actuator

Application

• Durability testing of drawer slides mounted on office desks and tables

• Cycle testing of horizontally sliding doors on furniture

• Testing of hinged joint door piece groups

• Extended element retention impact and durability evaluation

• Rebound testing of extendible elements

• Destructive testing with programmable force values

• Push-pull force measurement of drawer mechanisms

• Quality assurance for furniture hardware manufacturers

• Third-party testing laboratories performing BIFMA certification testing

• Furniture R&D facilities validating new slide designs

Complies with standard

ANSI/BIFMA X5.5-2014;

Test No. 10 Extendible Element Cycle Test;

Test No. 11 Extended Element Retention Impact & Durability Test;

Test No. 12 Extendible Element Rebound Test;

Technical parameters

1.Accommodate up to a 12 (305mm) deep drawer

2.Accommodate “soft close” slides

3.Have the ability to adjust the stroke within 12  (3mm)

4.Have a minimum of 12  (305mm) of vertical adjustment

5.Can handle maximum load of 300 lb (135kg)

6.Speed rate between 0-.25 m/s.

7.Have a stroke counting device with failure notification and automatic stop with the number of successful completed cycles recorded

8.Have the ability to test a free standing application or application where the slides are already mounted in the application.

9.Designed for a minimum 15 million cycle life expectancy

10.Servo actuator

11.CE certified

Frequently Asked Questions

Q: What is this equipment used for?
A: This equipment tests the durability and structural integrity of drawer slides and horizontally sliding doors on furniture, in compliance with ANSI/BIFMA X5.5-2014.

Q: How does it work?
A: A servo linear actuator applies controlled, repeatable cycles to the drawer slide or door at adjustable speeds up to 0.25 m/s, while the PLC controller monitors performance and records cycle counts.

Q: What standards does it comply with?
A: It complies with ANSI/BIFMA X5.5-2014 and supports Test No. 10 (Cycle Test), Test No. 11 (Retention Impact & Durability Test), and Test No. 12 (Rebound Test).

Q: What materials or products can be tested?
A: Drawer slides (including soft-close slides) from 10–24 inches long, horizontally sliding doors, and hinged joint door piece groups mounted on furniture.

Q: What parameters can it measure?
A: It measures cycle endurance up to 15 million cycles, push-pull force via a 200KG load cell, and can perform destructive testing with programmable force values.

Q: What industries use this equipment?
A: Furniture manufacturers, office furniture testing laboratories, quality assurance departments, third-party certification labs, and furniture R&D facilities.

Q: What are the installation requirements?
A: The equipment requires a stable, level surface for operation. It accommodates both freestanding and pre-mounted slide applications. Please consult the user manual or contact our technical team for detailed installation specifications.

Q: Is the equipment CE certified?
A: Yes, this equipment is CE certified.

Desk Drawer Slides Durability Testing Equipment.pd...

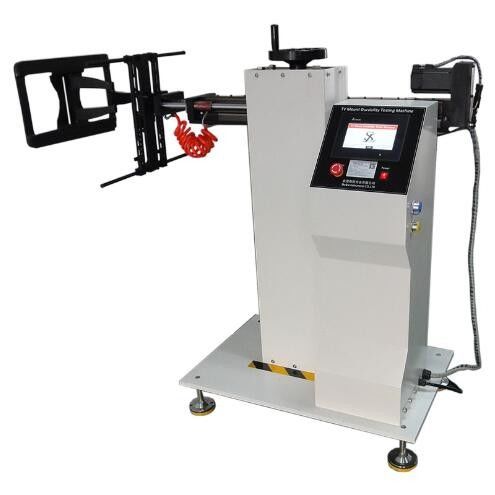

Controller (PLC+ Touch screen)
