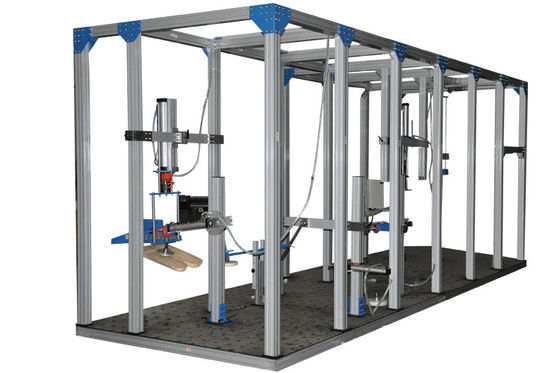

BIFMA 5.1 Integrated Furniture Test Machine With Muti Functions

BIFMA 5.1 Integrated Furniture Test Machine With Muti Functions

  • BIFMA 5.1 Integrated Furniture Test Machine With Muti Functions
BIFMA 5.1 Integrated Furniture Test Machine With Muti Functions
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T33
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Backrest Durability Testing Machine Loading Weight: 100lb Or 225 Lb
Standard: DIN 4551, EN 1335, NEN 1812 And BIFMA 5.1. Brand: SKYLINE
Speed: 16 And 20 Times / Min Or Specified Warranty: 18 Months
Highlight:

abrasion testing equipment

,

brake testing equipment

BIFMA 5.1 Furniture Testing Equipment Backrest Durability Testing Machine



This machine is to evaluate the ability of the chairs to withstand fatigue stresses and wear caused by rearward force on the backrest of the chair.


Specification



 Backrest Height  500-1200mm
 Test speed  16 and 20 times/min or specified
 Loaded weight  100lb or 225 lb
 Counter  LCD, 0-999,999
 Air pressure force  0-150lb
 Machine size  136 * 66 * 140cm
 Force stroke  0-18 inch
 Weight  549kg
 Force angle  0-90°
 Power  1 #, AC220V, 3A


Testing Standards

  • ANSI/BIFMA X5.1-2011 10 Tilt Mechanism Test - Cyclic
  • ANSI/BIFMA X5.1-2011 15 Backrest Durability Test - Cyclic - Type I
  • ANSI/BIFMA X5.1-2011 16 Backrest Durability Test - Cyclic - Type II and Type III

BIFMA 5.1 Integrated Furniture Test Machine With Muti Functions 0
