Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-FL082 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1 unit/ month |
| SKYLINE: | Foam Plastics Horizontal And Vertical Flammability Chamber | Standards: | ISO 845：1985 |
|---|---|---|---|
| Application: | Foam Plastics | Burner Angel: | 0-45 Degree |
| Flame Height: | 15mm-100mm | Bensun Diameter: | 9.5mm±0.3mm |
| Chamber Volume: | 0.5m3 | Power Supply: | 220V±10％ 50HZ |
| High Light: | abrasion testing equipment,physical testing equipment |
||
Application
Suitable for laboratory conditions under the ISO 845: 1985 measured by the density of less than 250kg / m3 of small plastic samples under small flames in the horizontal combustion performance.
Standards
ISO9772,ISO 97738
Specifications
| Ambient temperature | -10 ℃ ~ 30 ℃ |
| Relative humidity | ≤85% |
| Power supply voltage and power | 220V ± 10% 50HZ power less than 100W |
| MCU control | read the automatic timing |
| Bunsen burner diameter | 9.5mm ± 0.3mm Bunsen burner can be tilted in the range of 0-45 ° |
| Bunsen light blue flame height | 15mm-100mm can be adjusted, with a flame height scale |
| Sample folder vertical adjustment distance | ≤ 100mm sample holder horizontal direction adjustment distance: ≤ 70mm |
| Horizontal sample holder | can be placed 90 ° textile samples folder (optional) |
| Bunsen burner automatic ignition time | any set |
| Gas source | industrial methane gas, the concentration of not less than 98%, calorific value (37 +1) MJ / m³, need to bring the regulator and pressure gauge to ensure uniform airflow. Other sources of heat (37 + 1) MJ / m³ mixed gas source or calorific value of (94 +2) MJ / m³ of propane gas can also get similar results. In the event of controversy, industrial grade methane gas should be selected |
| Overall dimensions | width 1160mm × depth 600mm × height 1310 (including feet) mm |
| Combustion test area volume | > 0.5 cubic, long * wide * high about 900mm × 590mm × 1050mm, background black, background illumination ≤ 20Lux |
Accessories
1. Power cord 1
2. Igniter only 1
3. Horizontal pattern rack 1
4. Vertical sample rack 1
5. Air supply pipe 1.5
6. Spare scale only 1

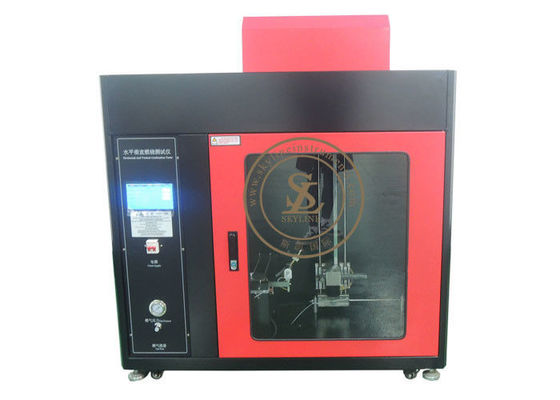

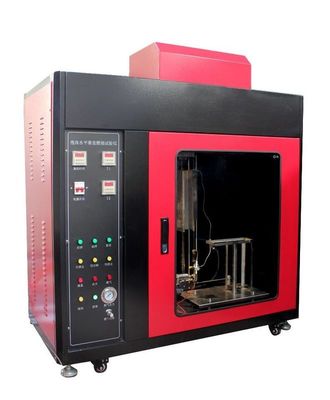

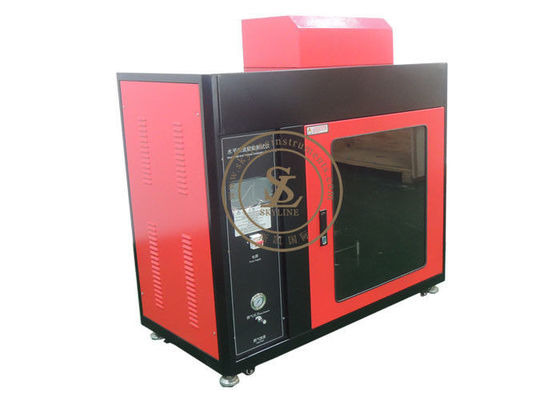

Foam Plastics Horizontal and Vertical Flammability Tester
