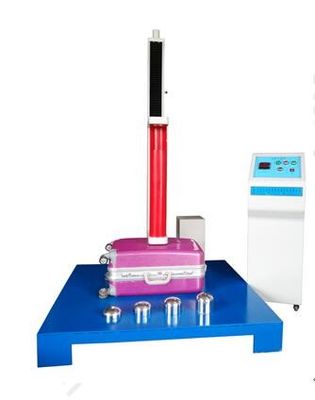

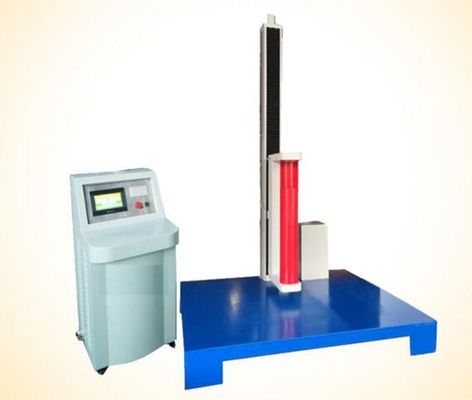

Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags

Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags

  • Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags
  • Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags
Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-TL08
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 35 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Luggage Drop Hammer Impact Testing Machine Maximum Height: 1500mm
Falling Ball Control Method: DC Electromagnetic Control Cylindrical Diameter: 100±2mm
Bottom Radius: 50±2mm Power: 1∮, AC 220V 2A
Highlight:

abrasion testing equipment

,

brake testing equipment

Luggage Drop Hammer Impact Testing Machine



Application

This product is suitable for the impact test of materials such as molded bags. The instrument is adjusted to a certain height with the impact head of the specified weight, so that it can fall freely and hit the sample, depending on the degree of damage.


Test standard

This instrument complies with JIS-K6745, A5430, QB/T 2918-2007 test standards.


Technical Parameters

 Maximum height  1500mm
 Falling ball control method  DC electromagnetic control
 Impact head weight  2000g, 3000g, 4000g, 50000g each
 Impact head size  cylindrical diameter 100±2mm, bottom radius 50±2mm
 Machine size  (L × W × H) 120cm × 120cm × 210cm
 Impact height  700±10mm
 Falling method  free fall
 Weight  about 80kg
 Power  1∮, AC 220V 2A



With anti-secondary impact device to ensure the damage caused by the secondary impact on the sample after the impact rebound.



Luggage Drop Hammer Impact Testing Machine for the Impact Test of Materials Molded Bags 0
