EN71-1 2m / s Tester / Toys Dynamic Strength Tester for Proformance of Toys Rides

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	Calibration Certificate
Model Number:	SL-S45

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negoitable
Packaging Details:	Plywood case
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Contact Now

Detailed Product Description

SKYLINE:	2m/s Tester / Toys Dynamic Strength Tester	Standard:	EN71-1-2011-8.22 ASTM F963, Clause 8.20 ISO 8142-1-2012-5.27
LoadA,B:	25kg,50kg	Test Speed:	2±0.2m/s
Obstruct:	50mmx50mm	Dimension (WxDxH) Main Machin:	153x450x156cm
Highlight:	physical testing equipment , brake testing equipment

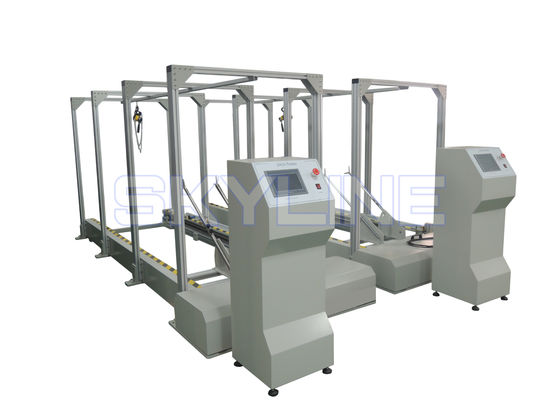

Toy Dynamic strength Tester for Wheeled Ride-on Toys Testing Equipment

Application

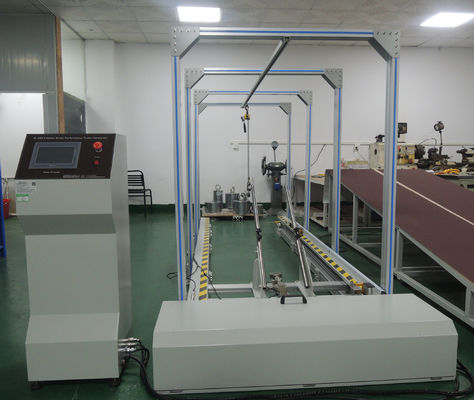

This instrument is mainly used for test the proformance of rides at the speed of toys 2m / s to strike 50x50mm obstruct. The machine simulation children riding tricycle operation state, put on the load on the sample and use 2 m/s speed to strike a piece of 50 x50mm obstacles block.After testing to check sample structure and performance if are in good condition or not

A load is secured to the toy, and articulated arms with the elbow joints in a downward position are attached to
the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient
step.
Determine whether the toy continues to conform to relevant requirements of this European Standard.

Techncial parameters

Conveyor belt speed	2m/s
Dimensions	153x450x156cm
Weight	900kg
Standards	EN71-1-2011-8.22 ASTM F963, clause 8.20 ISO 8142-1-2012-5.27 GB 6675-2014-5.24.4
Accessories	Load A Load B
