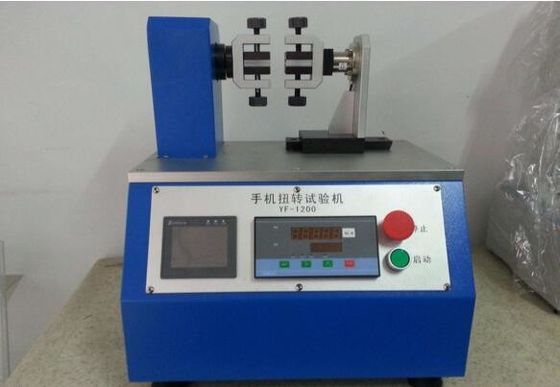

PLC Touch Screen Mobile Phone Twist Test Machine for Test Internal Structure Anti twist Performance

PLC Touch Screen Mobile Phone Twist Test Machine for Test Internal Structure Anti twist Performance

  • PLC Touch Screen Mobile Phone Twist Test Machine for Test Internal Structure Anti twist Performance
  • PLC Touch Screen Mobile Phone Twist Test Machine for Test Internal Structure Anti twist Performance
PLC Touch Screen Mobile Phone Twist Test Machine for Test Internal Structure Anti twist Performance
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-M007
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Mobile Phone Twist Test Machine Twist Range: 0.3～5N.m±0.5%FS
Test Speed: 1～40 Times/min Test Cycle: 1 ~ 30 Times / Minute
Highlight:

physical testing equipment

,

brake testing equipment

Mobile Phone Twist Test Machine



Application
It is suitable for mobile telephone, telephone receiver, handle
intercom, MP3, CD, electronic dictionary, all small electronic consumer products'twist testing.


Features

1.The structure design is reasonable and unique, and it has sufficient applicability to different types of mobile phones.

2. The equipment is stable, low noise and maintenance free.



Test Purpose

1. The durability of the phone case.

2. Internal structure anti-twist performance



Technical parameters

 Test Position  1
 Twist range  0.3～5N.m±0.5%FS
 Test speed  1～40 times/min
 Counter  0~99999999
 Mobile phone specification  the largeest size is 10 inch tablet
 Test cycle  1 ~ 30 times / minute
 Torque dispaly   4-digit LED
 Drive mode  electric drive mode
 Control functions  PLC touch screen control, stepper motor
 Accuracy  0.075Nm
 Alarm function  count value to alarm and stop
 Alarm mode  sound and light
 Working voltage  220VAC50HZ
 Dimension  W600×D550×H400mm



With LCD Touch screen and PLC program control. Easy to operate
