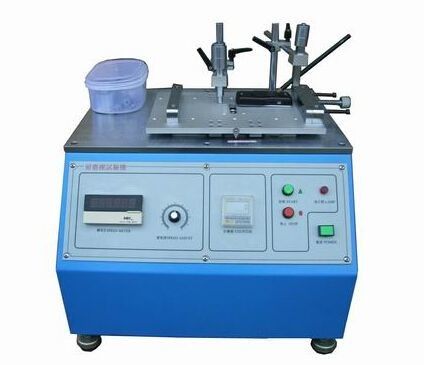

Mobile Phone Abrasion Testing Equipment Resistance to Alcohol Soluble Test of Spraying Products

Mobile Phone Abrasion Testing Equipment Resistance to Alcohol Soluble Test of Spraying Products

  • Mobile Phone Abrasion Testing Equipment Resistance to Alcohol Soluble Test of Spraying Products
Mobile Phone Abrasion Testing Equipment Resistance to Alcohol Soluble Test of Spraying Products
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-M004
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: SL-M004 Mobile Phone Abrasion Testing Equipment Test Distance: 25-60mm
Working Voltage: 220VAC 50HZ Drive Mode: Motor-driven
High Light:

abrasion testing equipment

,

physical testing equipment

Mobile Phone Abrasion Testing Equipment



Use
This machine is mainly used for resistance to alcohol soluble test of spraying products such as: buttons, plastic shell, coating surface, it also has a rubber friction testing function.



Specification

 Number of test sample  4(1 alcohol stick,3 rubber sticks)
 Saddle weights  500g or designation(net weight of friction stick:150g)
 Test distance  25-60mm
 Working voltage  220VAC 50HZ
 Drive mode  motor-driven
 Alarm function  alarm and the machine halt as soon as the count value arrive
 Test speed  10-90times/min  5-60 times/min
 Alarm mode  light  acousto-optic
 Control

 A,potentiometer adjust working speed

 B,working displacement manual operation

 C,6 LED count value displayed, 1~~999999 set freely,

power down memory

  A,working speed digital set
 B,working displacement digital set
 C,8 LED count value displayed, 1~~999999 set freely
 Display method  6 LED  HMI
