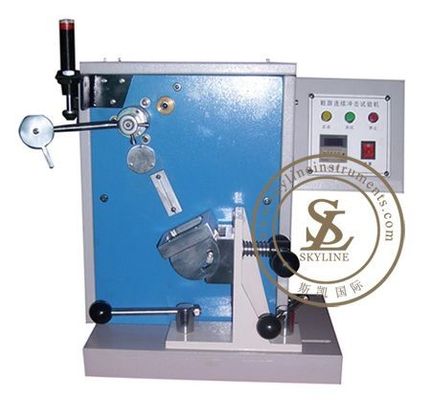

SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels

SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels

  • SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels
SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L15
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Heel Continuous Impact Testing Machine Pendulum: 12.5 ± 1.0 Mm
Impact Energy: 0.68J ± 0.02J Test Speed: 60 Times / Min
Counter: LCD Display 0~99,999,999 Power Supply: 1∮ 220 V 3A
Highlight:

abrasion testing equipment

,

brake testing equipment

SL-L15 Heel Continuous Impact Testing Machine


Uses

This machine is mainly used to test plastic heels, simulating the ability of women's shoes to resist continuous impact in the case of wearing. This pair of women's heels, with a movement per second, free fall, 0.68J of energy, impact hammer dropped from a horizontal position to a vertical position, impact the specimen until the heel breaks or reaches the required number of fatigue.


Standard

QB/T 2864 BS-5131 SATRA TM21


Technical Parameters

 Pendulum  12.5±1.0mm
 Impact energy  0.68J ± 0.02J
 Pendulum drive shaft center distance impact hammer center  152 ± 2 mm
 Impact hammer  57 ± 1 mm, thickness 20 ± 1 mm
 Impact head  length 35 ± 2 mm, width 20 ± 1 mm, radius 3.0 ± 0.5 mm, thickness 6 ± 0.5 mm
 Test speed  60 times / min
 Counter  LCD display 0~99,999,999
 Weight (approx.):  68 kg
 Power supply  1∮ 220 V 3A



The tip of the impact head is from the center of the hammer: 63.5 ± 2 mm
