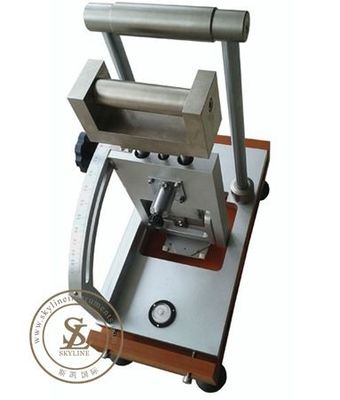

SL-L31 Portable Toggle Anti-slip Tester
Use:
This machine is suitable for testing the slip resistance of PU, PVC and other materials.
By applying a force of 10 Lb to the sample, the horizontal and vertical component forces are generated between the sample and the ground, and the friction coefficient of the sample is evaluated according to the principle of force balance.
Technical Parameters:
| load | 10Lb |
| Sample area | 3" x 3" (76.2 x 76.2 mm) |
| Slider | diameter 12mm |
| Test area | 4"×4" or more |
| The thickness of the bottom plate | 3/4" |
| Falling height | 1/8"~ 1/4" |
| Volume (about) | 40 × 22 × 39cm |
| Weight (about) | 15kg |
Standards compliant:
ASTM F1677
