ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine

ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine

  • ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine
  • ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine
ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L27
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Safety-Shoes-Impact-Testing-Machine Standards: ENISO20344
Impact Hammer Weight: 20±0.2kg Impact Blade: R3 ± 0.1mm
Impact Height: 0~1300mm Volume: 70*60*185cm
Weight: 300kg Power: AC220V50HZ
Highlight:

abrasion testing equipment

,

physical testing equipment

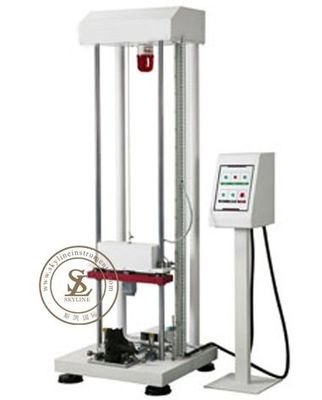

SL-L27 Safety Shoes Impact Testing Machine


Use:

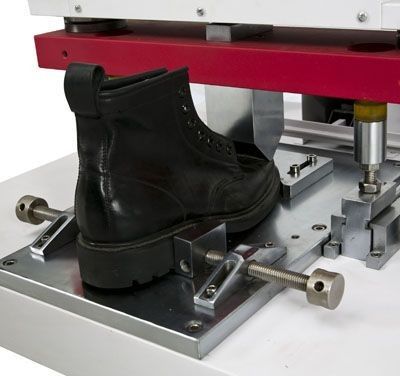

This machine will lift the impact hammer of a certain weight to the specified height and then release the impact hammer to the impact of the steel head between the safety shoes. After the disease, check the degree of the steel head to understand the safety quality of the safety shoes. The secondary impact function safely eliminates the misjudgment caused by the second impact on the test.


Standards compliant:
GB/T20991, ENISO20344, AS/NZS2210.1.ANSIZ41, CANZ195


Technical Parameters:



 Impact hammer weight  20±0.2kg
 Impact blade  r3 ± 0.1mm angle 90 degrees = 1 degree
 Impact height  0~1300mm
 Release method  battery iron release control
 Volume  70*60*185cm
 Weight  300kg
 Power  AC220V50HZ



ENISO20344 Lab Testing Equipment Safety Shoes Impact Testing Machine 0
