Home ProductsOil Analysis Testing Equipment

lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester

lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester

  • lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester
  • lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester
lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-OA32
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
Item: Automatic-Lubricating-Oils-Oxidation-Stability-Tester Heating Tube Power: 2500W
Range For Pressure Sensor: (0~1.6)MPa Accuracy: ±2‰
Temperature Control Accuracy: ±0.1℃ Rotation Speed: (100±5)r/min
Dimension: 550mm×800mm×1000mm Weight: 45Kg
Keywords: Lubricating Oil Analysis Equipment Brand: SKYLINE
High Light:

oil analysis equipment

,

oil testing equipment

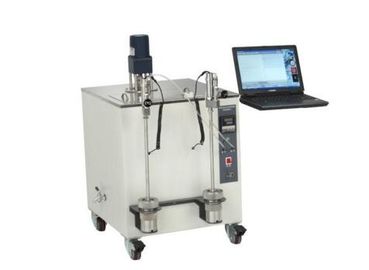

Oil Analysis Equipment Automatic Lubricating Oils Oxidation Stability Tester

lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester 0







Product information

The instrument is designed and made as per industrial standard of People’s Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.

The instrument is used to determine the oxidation stability of steam turbine with the same composition (oil base oil and additive) Also can be used to determine new mineral insulating oil containing 2,6-BHT.



Features

1.A new paperless recorder is used to analyze and manage a large amount of data recorded in the production process.
3.The pressure transmitter imported from the United States is used, which has high pressure accuracy.
4.The gear transmission device has the advantages of no noise, stable performance and no loss.
5.High temperature resistant bearing and high temperature sealing device are adopted to ensure stable rotation speed and more stable temperature of oil bath. The gear structure is set outside the bath, which can effectively avoid the hot corrosion of the gear caused by high temperature oil bath and prolong the service life of the gear.
6.The two oxygen bombs are separately controlled by two motors, making the speed more stable, more reliable and easier to maintain.

Technical parameters
Power supply voltage AC
220V ± 10%, 50Hz ± 10%
Temperature control range
room temperature~150 ± 0.1 ℃
Heating power
constant temperature 1KW, fast heating 2KW
Motor power
40W, 100 ± 5r/min
Recorder
New paperless pressure recorder, high pressure 1.6Mpa (screen display is 01.60Mpa)
Rotating oxygen bomb
2
Overall dimension
900mm × 450mm × 500mm
Weight
45kg
Ambient temperature
5 ℃~ 40 ℃
Relative humidity
≤ 85%
