| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE , Calibration Certificate |
| Model Number: | SL-ASTM D93 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |

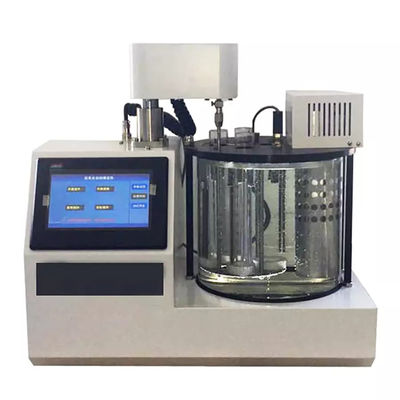

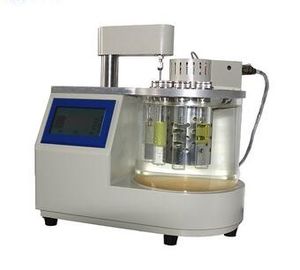

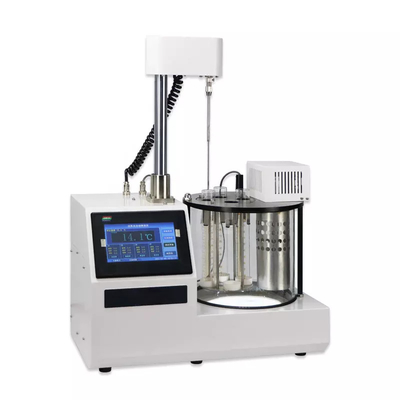

| SKYLINE: | Water Separability Test Apparatus | Standard: | ASTM D1401 |
|---|---|---|---|
| Oil Kinematic Viscosity Range: | 30 ~ 100mm2/s | Temperature Accuracy: | ±0.1℃ |
| Sample Stirring Motor: | 1500 ± 15rpm | Input Power: | 1.5kw |
| Power Supply: | AC220V/50Hz | ||
| High Light: | oil analysis equipment,oil testing equipment |
||
Application
This instrument complies with ASTM d1401 for the determination of water separability in oil and synthetic liquid water.
Technical parameter
1. Applicable to testing water separability of oil and synthetic liquid water. Applied to testing the oil, which kinematic viscosity is 30 ~ 100mm2/s when its temperature is 40 ℃ , the test temperature was 54 ± 0.1 ℃, it also also be used for oil which viscosity is greater than 100mmm 2/s, the test temperature is 82 ± 0.1 ℃.
2. Temperature range: adjustable within room temperature to 100℃
3. Temperature accuracy: ±0.1℃
4. The input power: 1.5kw
5. Intelligent: a microprocessor-based intelligent instrument temperature control, digital display of temperature, temperature correction function, PID auto-tuning function
6. Bath stirring motor: 15W
7. Sample stirring motor: 1500 ± 15rpm
8. The structure of the form: 2 hole
Main features
LCD monitor for touch screen operation
Exclusive use of the United States imports XECOM data processing chip, the data for accurate processing
Advanced embedded microcontroller technology
SMT surface mount technology
PID temperature setting technology, high temperature control accuracy
Automatic sample mixing, without manual operation
Sample cylinder automatically converted, still
Mixing time automatically timing, noise
Constant temperature bath bright and clear
