UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard

UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard

  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
  • UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S12U
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Carton case
Delivery Time: 5 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: UL Sharp Edge Tester Roller Dia: 136mm
Roller Width: 80mm Power Supply: AC220V 90W
Dimensions: 45*55*57cm(W×D×H) Standards: UL1439
Highlight:

physical testing equipment

,

brake testing equipment

UL1439 Toys / Computers Electronic Testing Equipment UL Sharp Edge Tester



Product information

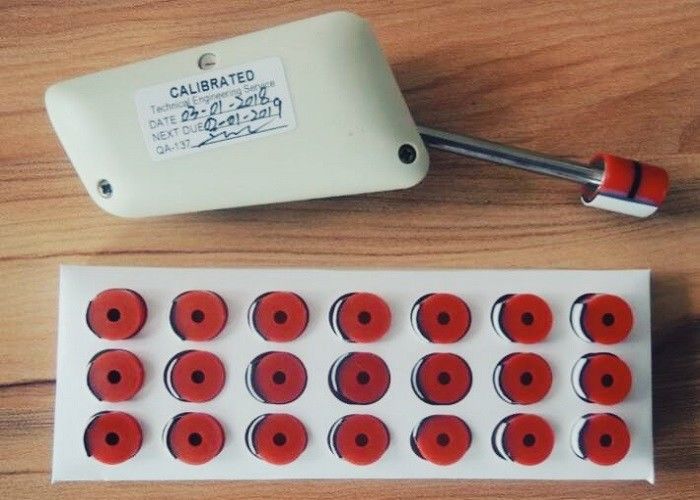

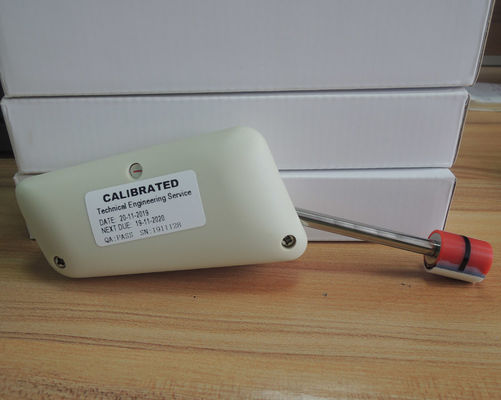

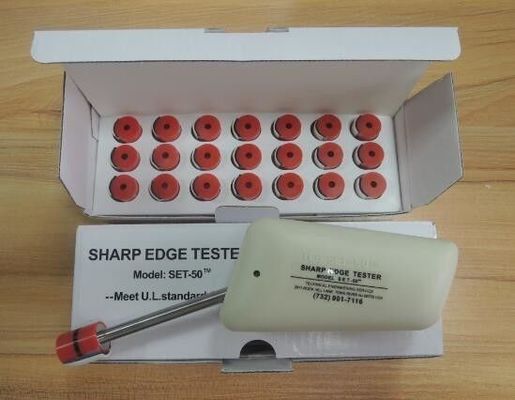

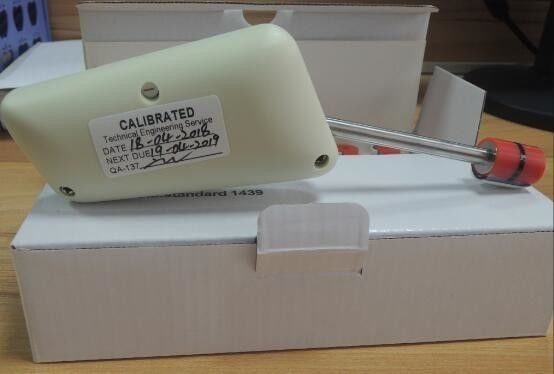

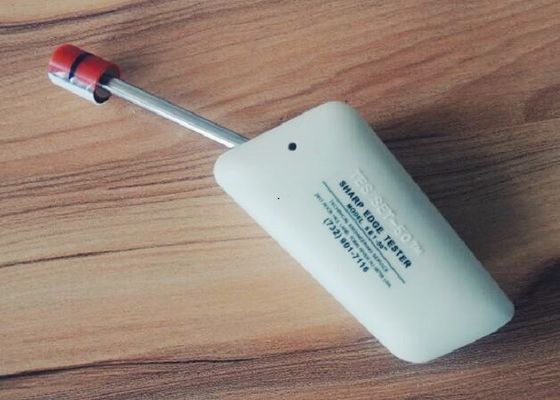

UL sharp edge tester is used to detect electrical products, including computers, household appliances
Whether there is a sharp edge that jeopardizes the safety of the user on the accessible location on the product is a safety test.


Test standard: UL1439D



Usage and understanding

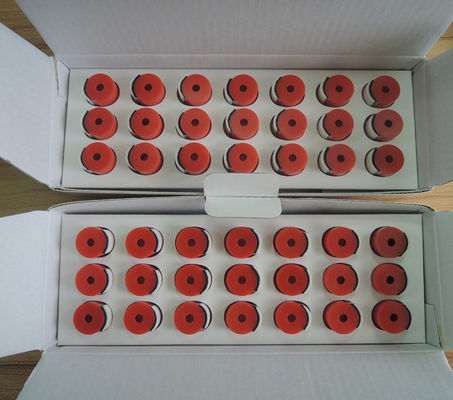

1.Put the test head with tape on the test head of the tester;
2.After placing the pressure test head on the tested edge, immediately use a force of 0.68KG to move 2 inches along the tested edge, and then return to

Starting point, the total distance moved is 4 inches;
3.After the test, check the test head. If the outermost two layers (simulated skin) on the test head are scratched, it indicates that the test edge is a sharp edge;



UL Sharp Edge Tester.pdf

UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard 0     UL Sharp Edge Tester For Electronic Products Complies with UL1439 Standard 1
