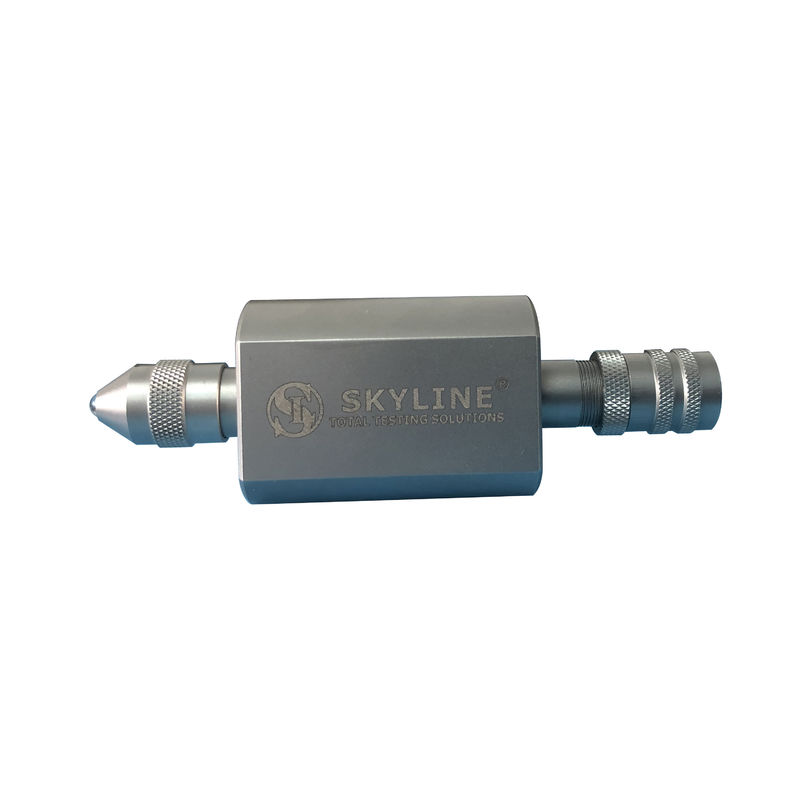

ISO8124-1 Toys Testing Equipment Sharp Point Tester
Product Information

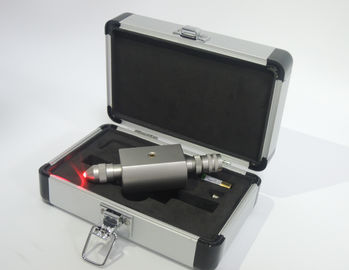

To determine whether accessible sharp points on toys are likely to cause injury. If the accessible sharp point penetrates a specified depth into the small rectangular opening of the tester, the LED is illuminated to indicate that the point is unacceptably sharp. Toys intended for use by children under 8 years old are subject to this requirement before or after use & abuse testing.

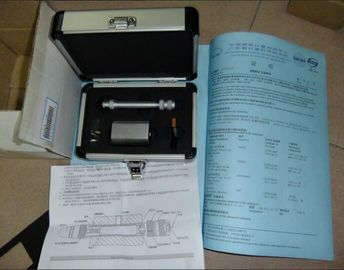

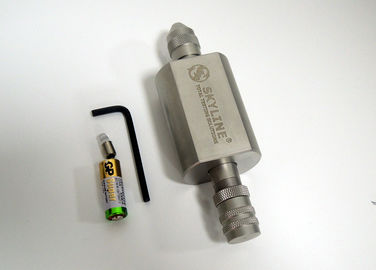

Accessories: weight, batteries, bulb 2 pieces
Testing Standards
16 CFR 1500.48, ASTM F963 4.8, EN-71 1998 8.14, ISO 8124
|
POWER 1.5AA batteries x 1 (for 2000 times test)
|
| WEIGHT 1.5KG |
| DEMENSIONS 150*100*60 MM (L*W*H) |
Technical Parameters
Testing groore size L1 (mm):
| Nominal | Testing average | Error | MPE | Conclusion |
| 1.02 | 1.009 | -0.011 | ±0.02 | PASS |
Testing groore size L2 (mm):
| Nominal | Testing average | Error | MPE | Conclusion |
| 1.15 | 1.143 | -0.007 | ±0.02 | PASS |
Testing groore depth (mm):
| Nominal | Testing average | Error | MPE | Conclusion |
| 0.38 | 0.39 | 0.01 | ±0.02 | PASS |
The offset of to turn 5graduation (mm):
| Nominal | Testing average | Error | MPE | Conclusion |
| 0.12 | 0.13 | 0.01 | ±0.02 | PASS |
Testing force (N):
| Nominal | Measured | Error | MPE | Conclusion |
| 4.5 | 4.4 | -0.06 | (0~-0.2) | PASS |
Spring force (N):
| Nominal | Measured | Error | MPE | Conclusion |
| 2.5 | 2.40 | -0.10 | (0~-0.3) | PASS |
Sharp Edge Tester and Sharp Point Tester.pdf
