Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Model Number: | SL-FL082 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiated |
Packaging Details: | Plywood case |
Delivery Time: | 15 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 1 unit/ month |
SKYLINE: | Foam Plastics Horizontal And Vertical Flammability Chamber | Standards: | ISO 845:1985 |
---|---|---|---|
Application: | Foam Plastics | Burner Angel: | 0-45 Degree |
Flame Height: | 15mm-100mm | Bensun Diameter: | 9.5mm±0.3mm |
Chamber Volume: | 0.5m3 | Power Supply: | 220V±10% 50HZ |
High Light: | abrasion testing equipment,physical testing equipment |
Application
Suitable for laboratory conditions under the ISO 845: 1985 measured by the density of less than 250kg / m3 of small plastic samples under small flames in the horizontal combustion performance.
Standards
ISO9722 ISO 97738
Specification
1. Ambient temperature: -10 ℃ ~ 30 ℃
2. Relative humidity: ≤85%
3. Power supply voltage and power: 220V ± 10% 50HZ power less than 100W
4. MCU control, read the automatic timing.
5. Bunsen burner diameter: 9.5mm ± 0.3mm Bunsen burner can be tilted in the range of 0-45 °
6. Bunsen light blue flame height: 15mm-100mm can be adjusted, with a flame height scale
7. Sample folder vertical adjustment distance: ≤ 100mm sample holder horizontal direction adjustment distance: ≤ 70mm
8. Horizontal sample holder can be placed 90 ° textile samples folder (optional)
9. Bunsen burner automatic ignition time: any set
10. Gas source: industrial methane gas, the concentration of not less than 98%, calorific value (37 +1) MJ / m³, need to bring the regulator and pressure gauge to ensure uniform airflow. Other sources of heat (37 + 1) MJ / m³ mixed gas source or calorific value of (94 +2) MJ / m³ of propane gas can also get similar results. In the event of controversy, industrial grade methane gas should be selected.
11. Overall dimensions: width 1160mm × depth 600mm × height 1310 (including feet) mm
12. Combustion test area volume:> 0.5 cubic, long * wide * high about 900mm × 590mm × 1050mm, background black, background illumination ≤ 20Lux.
Accessories
1.Power cord 1
2.Igniter only 1
3. Horizontal pattern rack 1
4. Vertical sample rack 1
5. Air supply pipe 1.5
6. Spare scale only 1

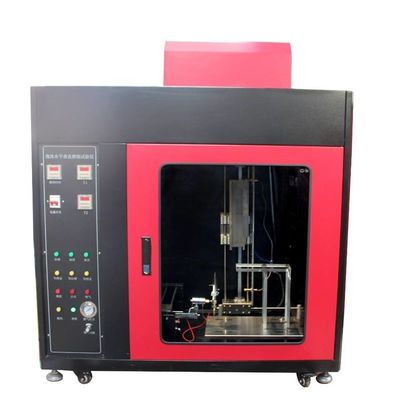

Foam Plastics Horizontal and Vertical Flammability Tester
